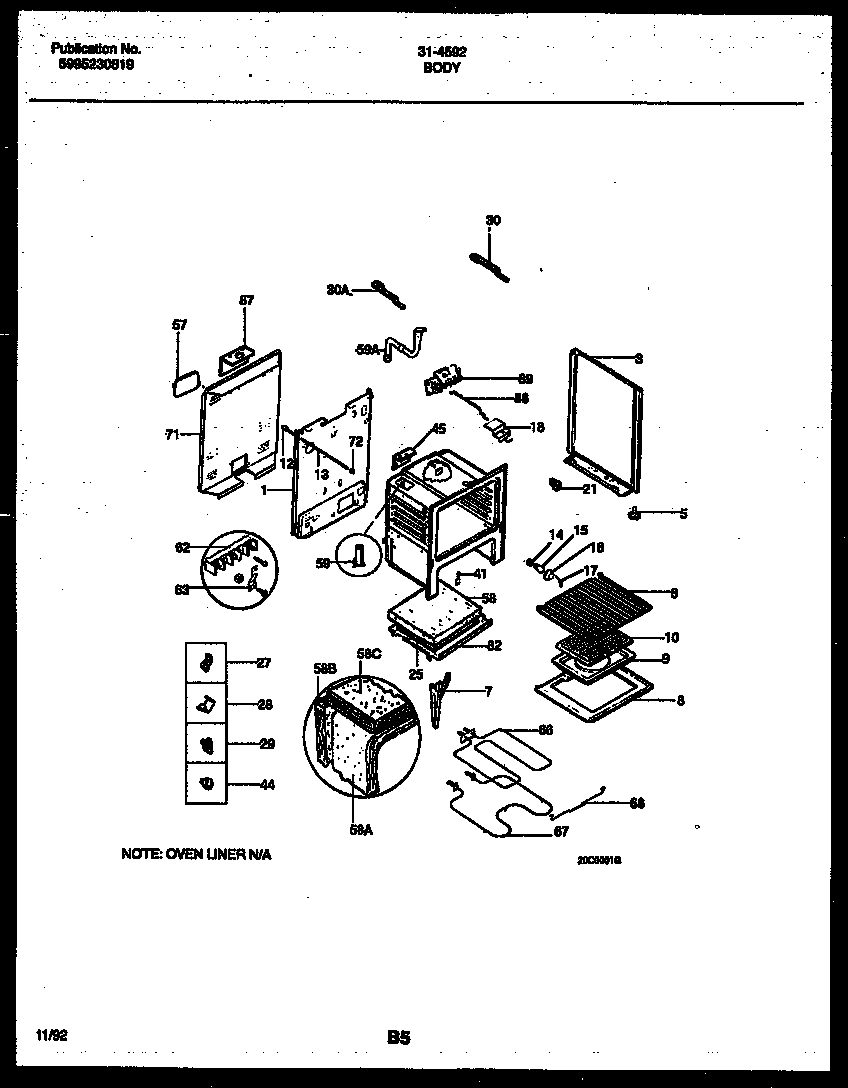

31-4592-23-01 03 – BODY PARTS

Products

PositionProduct
*81585316205500 Frigidaire Oven Nut
1BACK-MAIN, AUTOLATCH
3WCI 5303269543
3BWCI 5303269545
3CSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3DFASTENER-EDGE MTG (NOT ILLUSTRATED)
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
5AANTI-TIP KIT (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9PAN-BROILER
10WCI 5303131356
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
275303284616 Frigidaire Range Bulb Clip Thermostat
28Clip,wiring harness ,green ,main top
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30ABRACKET-HINGE, MAIN TOP, LH
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316048001
57COVER-ACCESS
58AWCI 316047700
58CINSULATION, OVEN TOP
58316403803 Frigidaire Insulation
58BINSULATION OVEN BACK (NON-ILLUSTRATED)
59AWCI 316023600
59BBRACKET-MOUNTING,VENT TUBE
59WCI 5303271905
625304409888 Frigidaire Oven Terminal Block with Hardware
