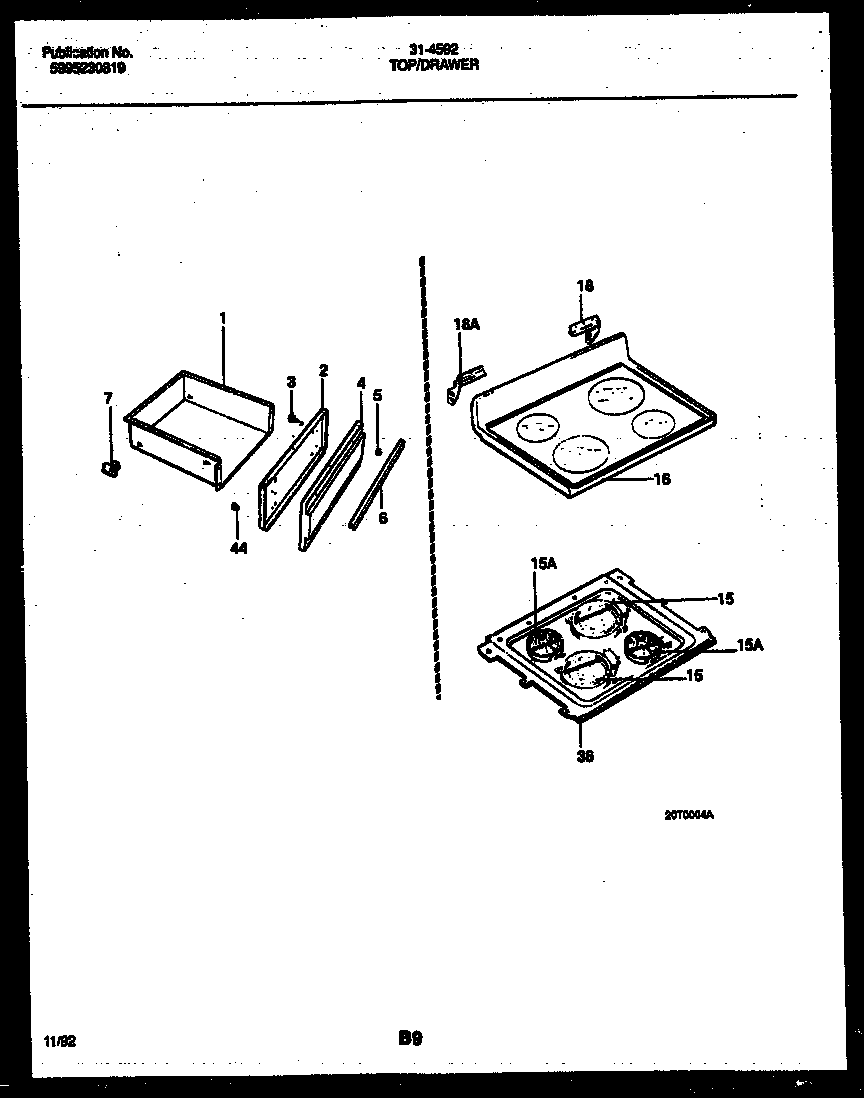

31-4592-23-01 05 – COOKTOP AND DRAWER PARTS

31-4592-23-01 05 – COOKTOP AND DRAWER PARTS

Written by

in

31-4592-23-01 05 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
*81591WCI 3015707
*81591WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
3SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
4PANEL – BROILER ALMD
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
6HANDLE-DRAWER, ALMOND
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A318178110 Frigidaire Oven Range 6" Surface Element
15318198834 Frigidaire Oven Element
16WCI 316035501
18HINGE-MAIN TOP (RH)
18AHINGE-MAIN TOP (LH)
36WCI 316033601
36AWCI 316023300
36BWCI 316041000
443131903 Frigidaire Door/Drawer Bumper
