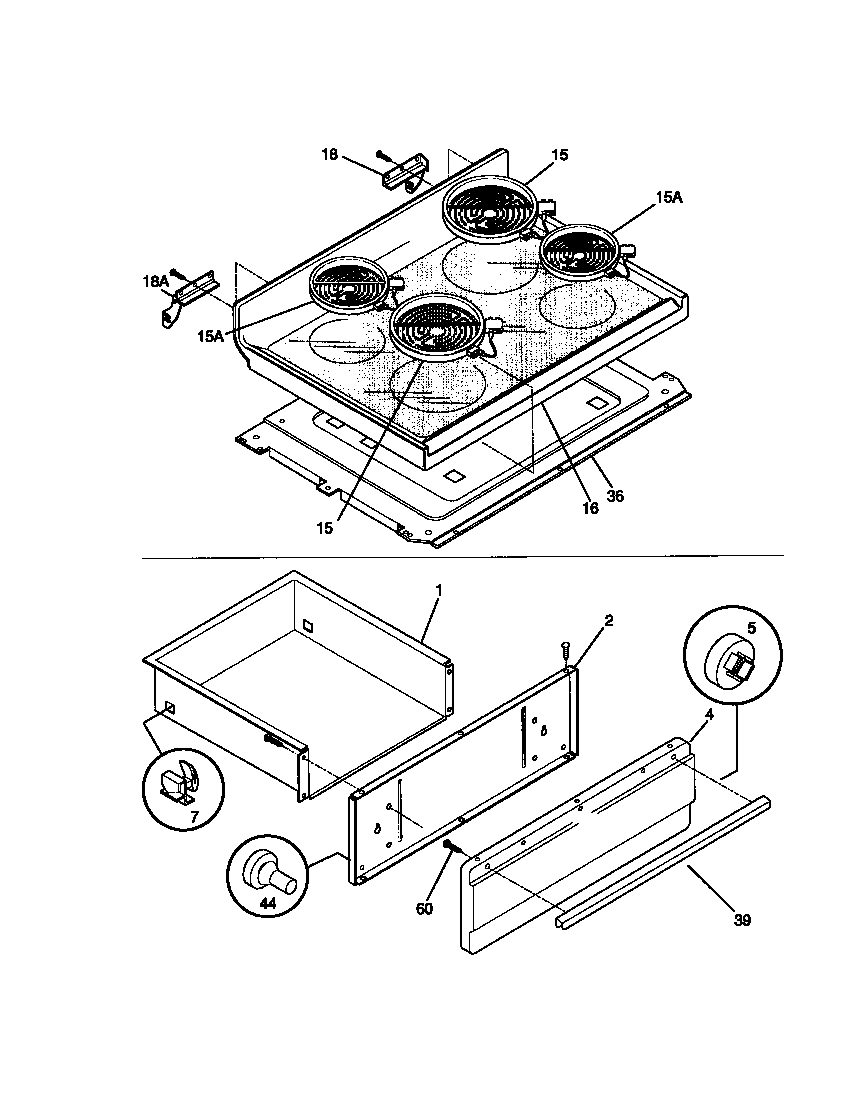

31-4592-23-02 04 – TOP, DRAWER

31-4592-23-02 04 – TOP, DRAWER

Written by

in

31-4592-23-02 04 – TOP, DRAWER

Products

PositionProduct
*41010LENS-LIGHT/LAMP, INDICATOR
*41013131243700 Frigidaire Screw
*41015WCI 316001732
*41011WCI 5303281379
*41009LIGHT/LAMP, IND, HOT SURFACE
*41012WCI 5303281584
*41014WCI 5309951550
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316056206
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15BLIMITER SWITCH, LARGE/8 INCH (NOT ILLUSTRATED)
15A318178110 Frigidaire Oven Range 6" Surface Element
15A318198834 Frigidaire Oven Element
15BWCI 5303305628
16WCI 316035501
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
36CWCI 316041001
36BWCI 316023301
36AWCI 316033610
39HANDLE-DRAWER, ALMOND
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
