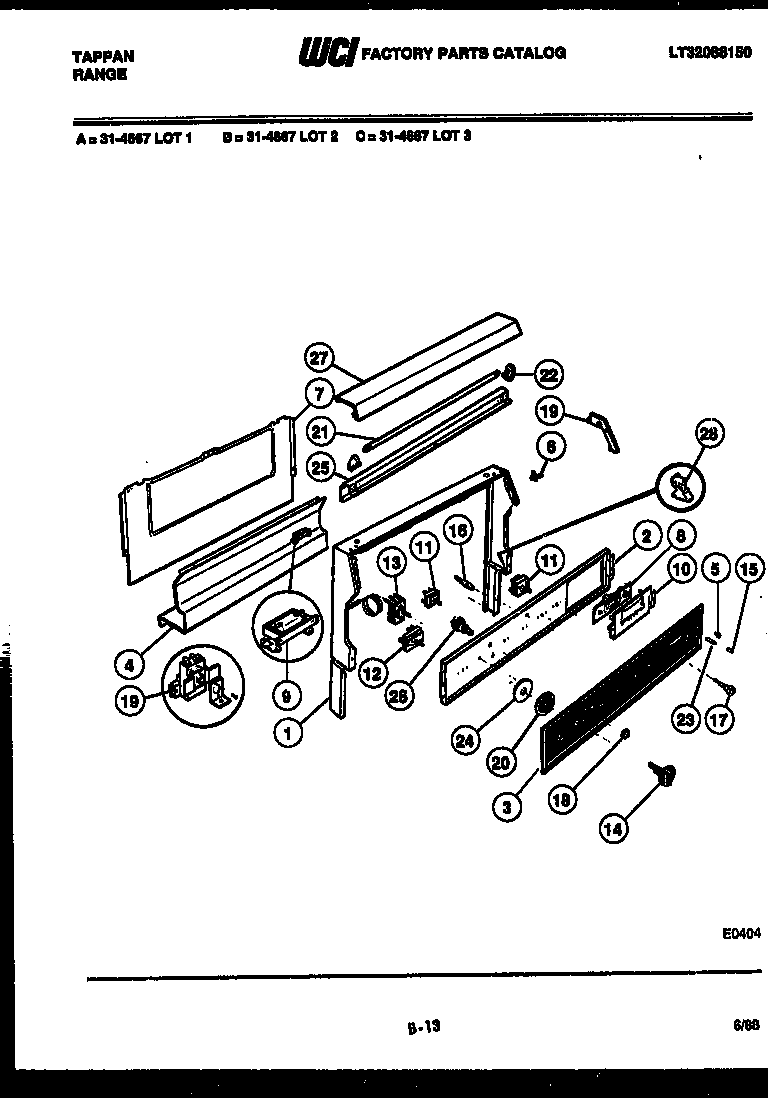

31-4667-18-01 02 – BACKGUARD

31-4667-18-01 02 – BACKGUARD

Written by

in

31-4667-18-01 02 – BACKGUARD

Products

PositionProduct
1WCI 3051455
2PLATE-INSTR MTG
3WCI 3051897
4TRIM-LOW SPLSHR
5NUT – DECOR (2)
6FSTNR-GLASS(2)
7SHIELD-BACKGUARD,REAR WALL
8WCI 3051118
9WCI 3051115
10WCI 3131556
11SWITCH S/U (4)
12SWITCH-SELECTOR, 5 POS, UPPER
13WCI 3051323
14WCI 3051188
15WCI 358T206P01
16INDICATOR LIGHT-250V (2)
16AINDICATOR LIGHT-125V (3)
17WCI 106T051P06
18WCI 3051727
19WCI 123T119P01
19AWCI 123T119P02
20WCI 3051128
20BWCI 3051131
20AWCI 3051130
21BULB-FLUOR
22RECEPTACLE-FLU LT LH
22ARECEPTACLE-FLU LT RH
23SHAFT-ELEC. CLK.
24WCI 3051304
25WCI 3131277
26ASW.-FLUOR. LT.
26SWITCH-OV LT
27WCI 3051329
28SUPPORT-BACKGUARD (2)
