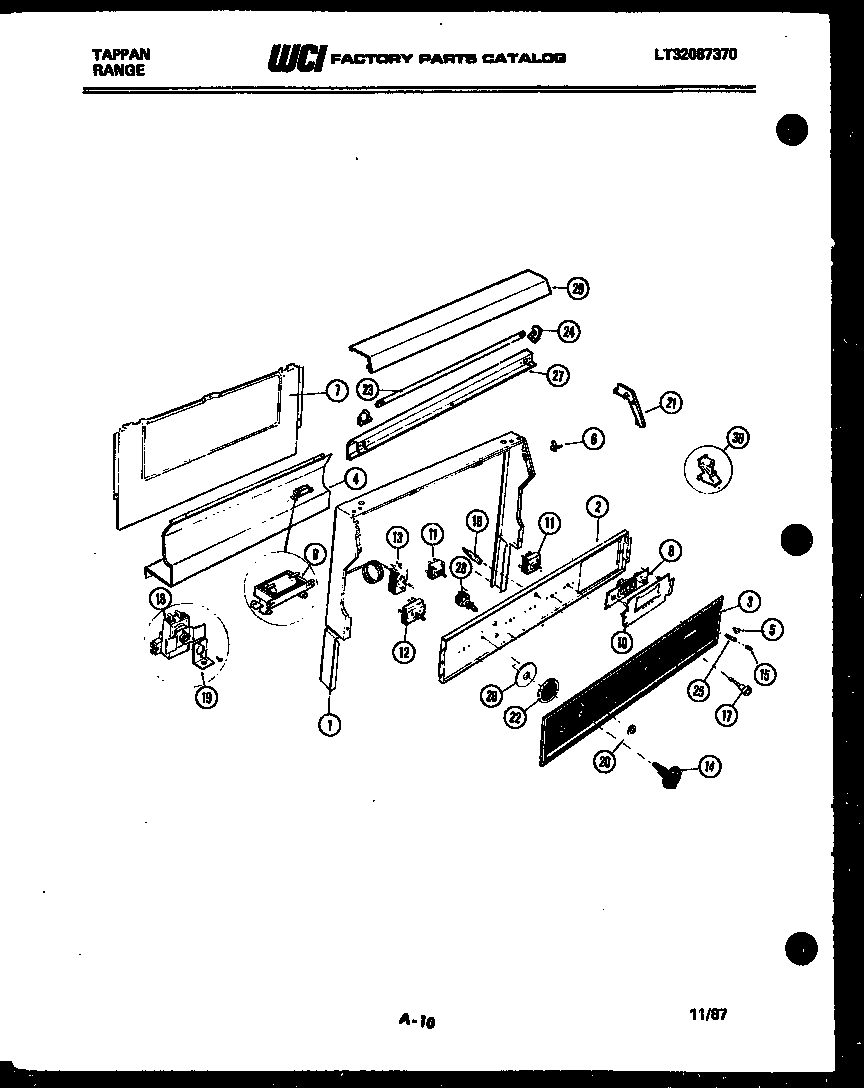

31-4967-00-01 02 – BACKGUARD

31-4967-00-01 02 – BACKGUARD

Written by

in

31-4967-00-01 02 – BACKGUARD

Products

PositionProduct
1WCI 3051455
2PLATE-INSTR MTG
3WCI 3015360
4TRIM-LOW SPLSHR
5NUT – DECOR (2)
6FSTNR-GLASS(2)
7SHIELD-BACKGUARD,REAR WALL
8WCI 3051119
9WCI 3051115
10WCI 3131556
11SWITCH S/U (4)
12WCI 3051315
13THERMO-OVEN
14WCI 3051188
15WCI 358T206P01
16INDICATOR LIGHT-250V (2)
16INDICATOR LIGHT-125V (3)
17BUTTON CLOCK (3)
18THERMOSTAT-S/C
19ANGLE-S/C THERM. MTG
20WCI 3051727
21WCI 3051896
21WCI 3051895
22DIAL, SELECTOR SWITCH
22WCI 3051128
22WCI 3051131
23BULB-FLUOR LT
24RECEPTACLE-FLU LT LH
24RECEPTACLE-FLU LT RH
25SHAFT-ELEC. CLK.
26WCI 3051304
27WCI 3131277
28SW.-FLUOR. LT.
28SWITCH-OV LT
29WCI 3051329
