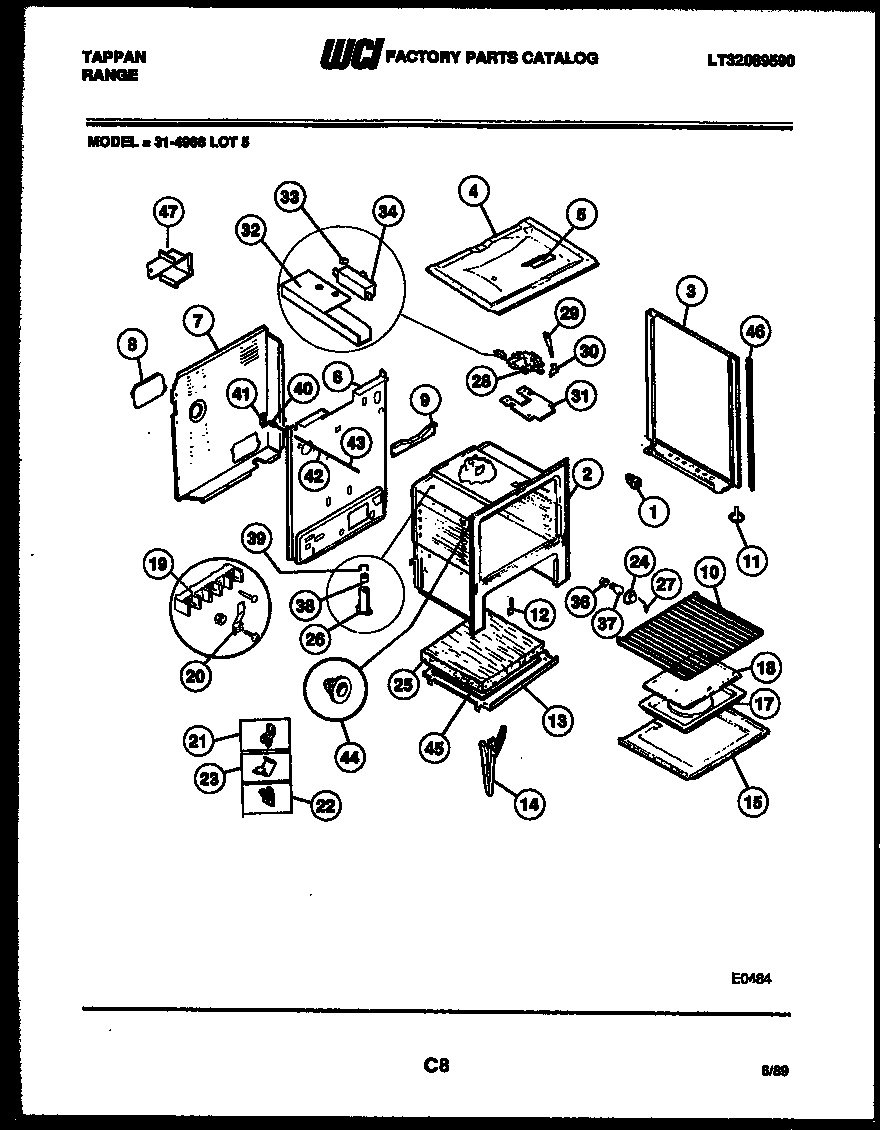

31-4968-00-05 03 – BODY PARTS

Products

Position	Product
*24080	ANTI-TIP KIT (NOT ILLUSTRATED)
1	SPACER, BODYSIDE (8)
3A	B/S-RH-(WHITE)
3	B/S-LH-(WHITE)
3	WCI 3201000
3A	WCI 3201001
4	WCI 3051109
5	WCI 3131101
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	PANEL-OVEN BOTTOM
17	PAN, BROILER
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 711T048P01
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	WCI 3051344
27E	NUT-HEX BRASS (6) (NON-ILLUSTRATED)
27D	SCREW-HNG MTG (6) (NON-ILLUSTRATED)
27B	INSUL OVEN BACK (NON-ILLUSTRATED)
27C	3131903 Frigidaire Door/Drawer Bumper
27	RETAINER-GLASS
27A	INSULATION OVEN BACK (NON-ILLUSTRATED)
28	WCI 3015361
29	WCI 3051473
30	KNOB, LATCH
30A	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FASTENER, PUSH ON (3)
34	WCI 3131672
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 244T041P01
39	RETAIN, CATALYST
40	SWITCH-OVEN LITE DOOR
41	BRKT LIGHT SWITCH
42	ROD-LIGHT SWITCH
43	WCI 3051251
44	BOTTOM REMOTE LITE SWITCH
45A	WCI 3131305
45	WCI 3200848
46B	FASTENER-EDGE MTG (NOT ILLUSTRATED)
46	TRIM-VERT B/S (2)
46A	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
47	WCI 3203582
