31-4968-23-02 02 – BACKGUARD

31-4968-23-02 02 – BACKGUARD

Written by

in

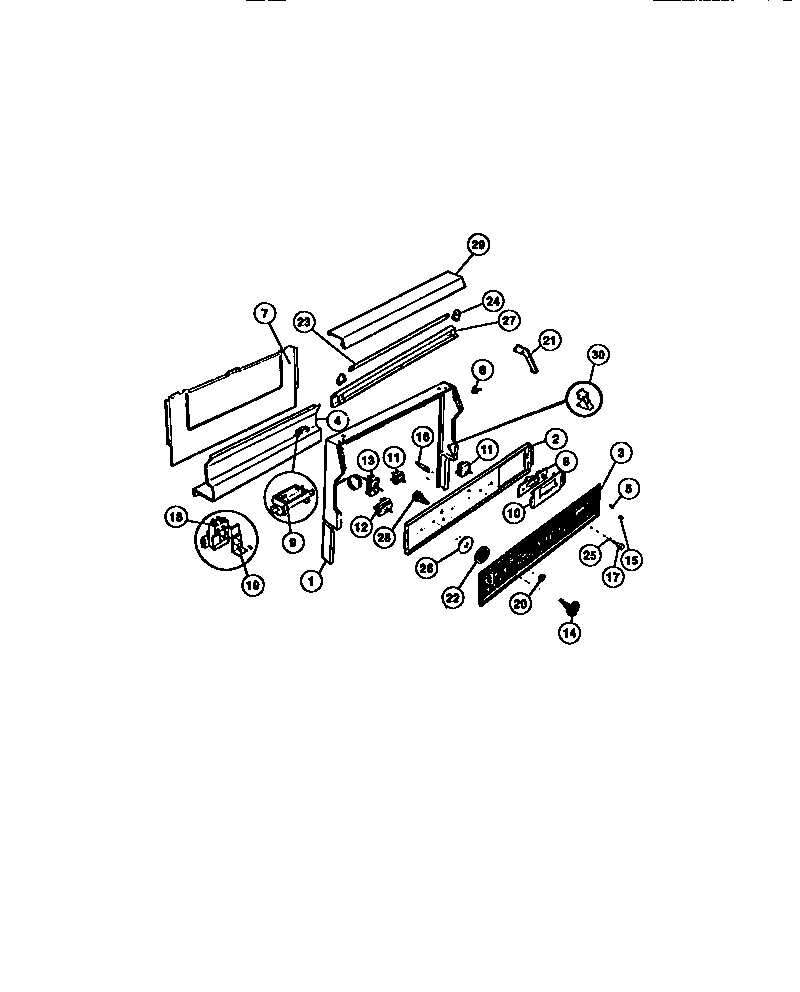

31-4968-23-02 02 – BACKGUARD

Products

PositionProduct
1WCI 3016779
2PLATE-INSTR MTG
3WCI 3015360
4TRIM, LOWER SPLASHER
5NUT – DECOR (2)
6FASTENER, GLASS (2)
7SHIELD-BACKGUARD,REAR WALL
8WCI 3051119
9WCI 3051115
10WCI 3131556
11SWITCH S/U (4)
12WCI 3051315
13THERMO-OVEN
14WCI 3051188
15WCI 358T206P01
16AINDICATOR LIGHT-125V (3)
16INDICATOR LIGHT-250V (2)
17BUTTON CLOCK (3)
18THERMOSTAT-S/C
19ANGLE-S/C THERM. MTG
20WCI 3051727
21ACAP, END RH
21CAP, END LH
22WCI 3051128
22BDIAL, SELECTOR SWITCH
22AWCI 3051131
23BULB-FLUOR
24RECEPTACLE-FLU LT LH
24ARECEPTACLE-FLU LT RH
25SHAFT-ELEC. CLK.
26WCI 3051304
27WCI 3131277
28SWITCH-OV LT
28ASW.-FLUOR. LT.
29WCI 3131466
30SUPPORT-BACKGUARD (2)
