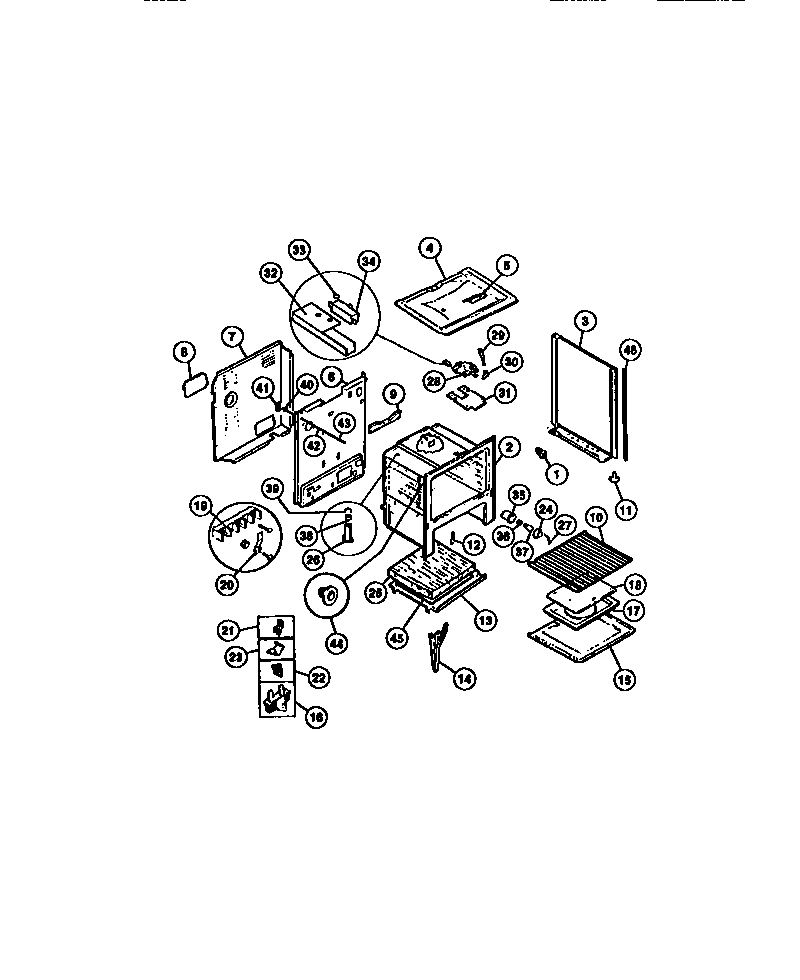

31-4968-23-02 03 – BASIC BODY

Products

Position	Product
*69044	NUT-HEX BRASS (6) (NON-ILLUSTRATED)
*69043	SCREW-HNG MTG (6) (NON-ILLUSTRATED)
*69042	3131903 Frigidaire Door/Drawer Bumper
*69048	FASTENER-EDGE MTG (NOT ILLUSTRATED)
*69045	WCI 3131305
*69047	INSULATION, OVEN WRAPPER
*69041	INSUL OVEN BACK (NON-ILLUSTRATED)
1	SPACER, BODYSIDE (8)
3	PNL B/S-RH (ALMOND)
3A	PNL B/S-LH (ALMOND)
4	WCI 3051109
5	WCI 3131101
6	WCI 3131567
7	WCI 3051400
8	COVER, LOWER ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	WCI 636M004P01
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	WCI 3051104
16	FUSE-THERMAL CUTOUT
17	PAN, BROILER
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 711T048P01
21	CLIP-TUBING (2)
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	WCI 3131298
25	316403803 Frigidaire Insulation
26	WCI 3051344
27	WCI 3131104
28	WCI 3015361
29	WCI 3051473
30	KNOB, LATCH
30A	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FASTENER, PUSH ON (3)
34	SWITCH-LATCH
35	WCI 3131363
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 244T041P01
39	RETAIN, CATALYST
40	SWITCH-OVEN LITE DOOR
41	BRKT LIGHT SWITCH
42	ROD-LIGHT SWITCH
43	WCI 3051251
44	BOTTOM REMOTE LITE SWITCH
45	WCI 3200848
46	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
46	TRIM-VERT B/S (2)
