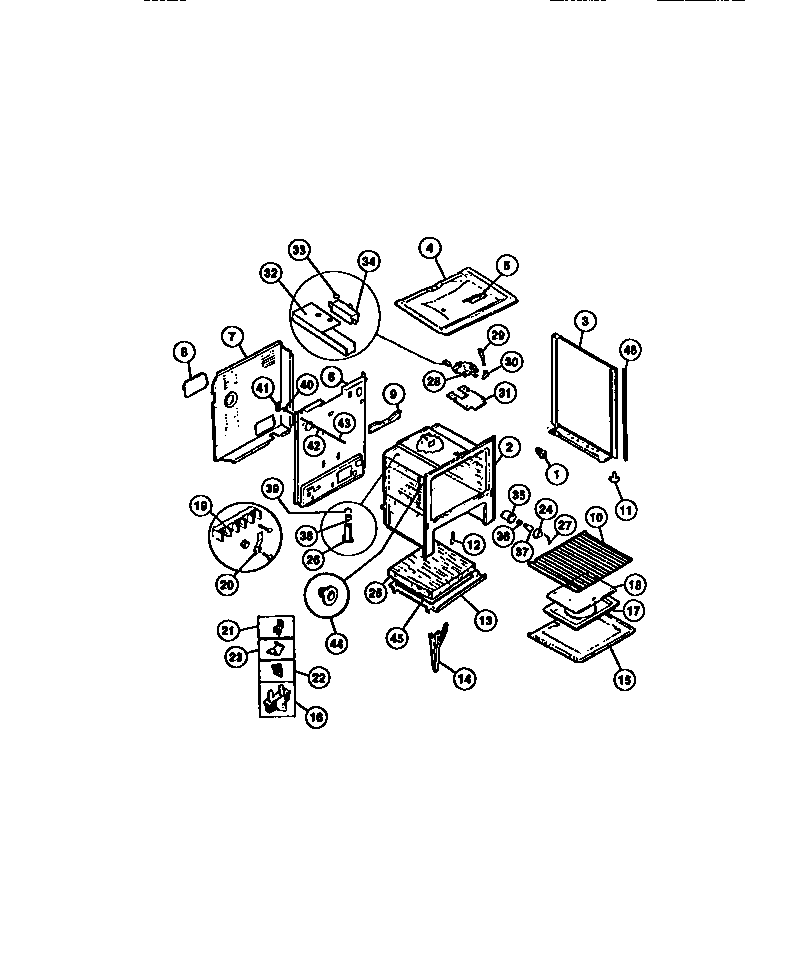

31-4968-23-03 03 – BASIC BODYadmin2025-04-26T11:12:31+00:0031-4968-23-03 03 – BASIC BODY
Products
| Position | Product |
|---|
| *69043 | SCREW-HNG MTG (6) (NON-ILLUSTRATED) |
| *69042 | 3131903 Frigidaire Door/Drawer Bumper |
| *69047 | INSULATION, OVEN WRAPPER |
| *69045 | WCI 3131305 |
| *69048 | FASTENER-EDGE MTG (NOT ILLUSTRATED) |
| *69041 | INSUL OVEN BACK (NON-ILLUSTRATED) |
| *69044 | NUT-HEX BRASS (6) (NON-ILLUSTRATED) |
| 1 | SPACER, BODYSIDE (8) |
| 3A | PNL B/S-LH (ALMOND) |
| 3 | PNL B/S-RH (ALMOND) |
| 4 | WCI 3051109 |
| 5 | WCI 3131101 |
| 6 | WCI 3131567 |
| 7 | WCI 3051400 |
| 8 | COVER, LOWER ACCESS |
| 9 | COVER-FLUE |
| 10 | 316067902 Frigidaire Oven Rack |
| 11 | WCI 636M004P01 |
| 12 | WCI 3131570 |
| 13 | SHIELD, OVEN BOTTOM |
| 14 | WCI 316007002 |
| 15 | WCI 3051104 |
| 17 | PAN, BROILER |
| 18 | WCI 3131356 |
| 19 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 20 | WCI 711T048P01 |
| 21 | 5303284616 Frigidaire Range Bulb Clip Thermostat |
| 22 | 3051162 Frigidaire Oven Range Front Broiler Drawer Glide |
| 23 | WCI 3051367 |
| 24 | WCI 3131298 |
| 25 | 316403803 Frigidaire Insulation |
| 26 | WCI 3051344 |
| 27 | WCI 3131104 |
| 28 | WCI 3015361 |
| 29 | WCI 3051473 |
| 30A | SCREW-SET KNOB MTG (NON-ILLUSTRATED) |
| 30 | KNOB, LATCH |
| 31 | SHIELD-LATCH |
| 32 | SHIELD-LATCH (NON-ILLUSTRATED) |
| 33 | FASTENER, PUSH ON (3) |
| 34 | WCI 3131672 |
| 35 | WCI 3131363 |
| 36 | 316116400 Frigidaire Oven Light Socket |
| 37 | 316538904 Frigidaire Oven Lamp Light |
| 38 | WCI 244T041P01 |
| 39 | RETAIN, CATALYST |
| 40 | SWITCH-OVEN LITE DOOR |
| 41 | BRKT LIGHT SWITCH |
| 42 | ROD-LIGHT SWITCH |
| 43 | WCI 3051251 |
| 44 | BOTTOM REMOTE LITE SWITCH |
| 45 | WCI 3200848 |
| 46 | TRIM-VERT B/S (2) |
| 46 | SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED) |
