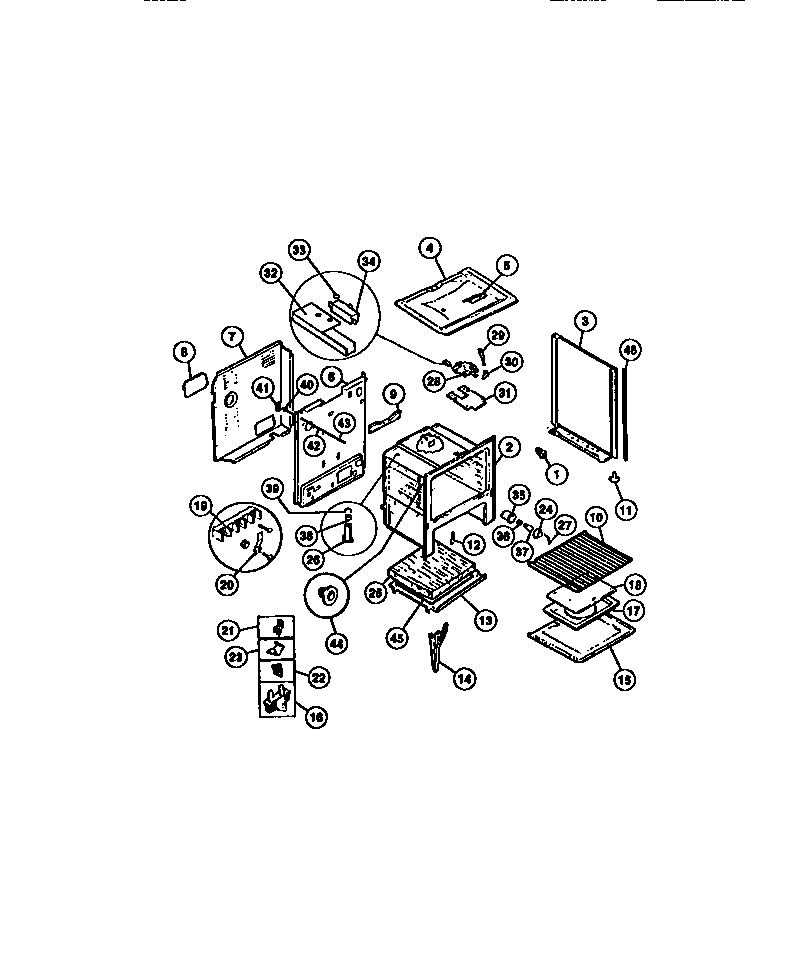

31-4968-23-04 03 – BASIC BODY

Products

PositionProduct
*69046ANTI-TIP KIT (NOT ILLUSTRATED)
*690423131903 Frigidaire Door/Drawer Bumper
*69045WCI 3131305
*69047INSULATION, OVEN WRAPPER
*69043SCREW-HNG MTG (6) (NON-ILLUSTRATED)
*69044NUT-HEX BRASS (6) (NON-ILLUSTRATED)
*69048FASTENER-EDGE MTG (NOT ILLUSTRATED)
*69041INSUL OVEN BACK (NON-ILLUSTRATED)
1SPACER, BODYSIDE (8)
3PNL B/S-RH (ALMOND)
3APNL B/S-LH (ALMOND)
4WCI 3051109
5WCI 3131101
6WCI 3131567
7SHIELD, LOWER WALL
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14WCI 316007002
15WCI 3051104
17PAN, BROILER
18WCI 3131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20WCI 711T048P01
215303284616 Frigidaire Range Bulb Clip Thermostat
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
24WCI 3131298
25316403803 Frigidaire Insulation
26WCI 3051344
27WCI 3131104
28WCI 3015361
29WCI 3051473
30KNOB, LATCH
30ASCREW-SET KNOB MTG (NON-ILLUSTRATED)
31SHIELD-LATCH
32SHIELD-LATCH (NON-ILLUSTRATED)
33FASTENER, PUSH ON (3)
34WCI 3131672
35WCI 3131363
36316116400 Frigidaire Oven Light Socket
37316538904 Frigidaire Oven Lamp Light
38WCI 244T041P01
39RETAIN, CATALYST
40SWITCH-OVEN LITE DOOR
41BRKT LIGHT SWITCH
42ROD-LIGHT SWITCH
43WCI 3051251
44BOTTOM REMOTE LITE SWITCH
45WCI 3200848
46TRIM-VERT B/S (2)
46SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
