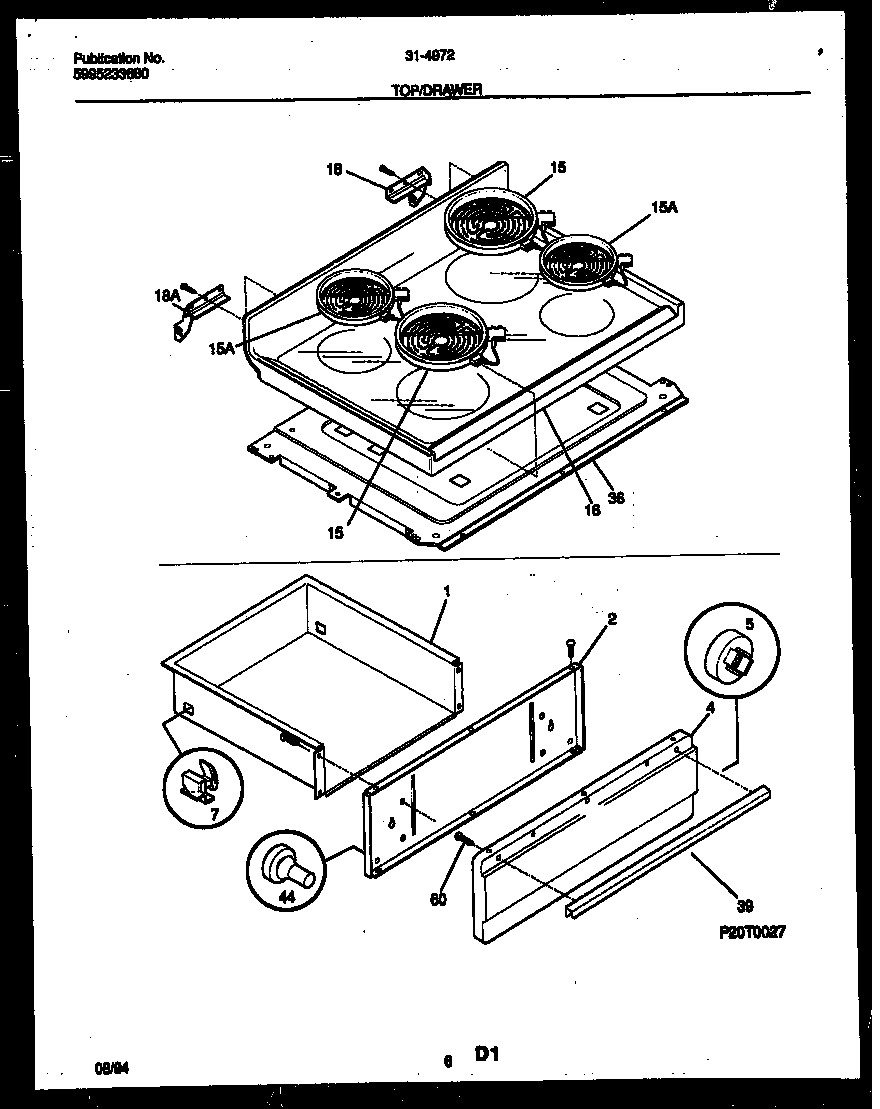

31-4972-00-01 04 – COOKTOP AND DRAWER PARTS

31-4972-00-01 04 – COOKTOP AND DRAWER PARTS

Written by

in

31-4972-00-01 04 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
*10585WCI 5303281584
*10585WCI 5309951550
1DRAWER-UTILITY
2SHIELD-PNL
4PNL-DRAWER (WHTE)
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318198834 Frigidaire Oven Element
15BLIMITER SWITCH, LARGE/8 INCH (NOT ILLUSTRATED)
15CWCI 5303305631
15A318178110 Frigidaire Oven Range 6" Surface Element
16BLENS-LIGHT/LAMP, INDICATOR
16ALIGHT/LAMP, IND, HOT SURFACE
16WCI 316035513
18AHINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
18B131243700 Frigidaire Screw
36WCI 316033601
36AWCI 316023300
36BWCI 316041000
39HANDLE-DRAWER, WHITE
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
