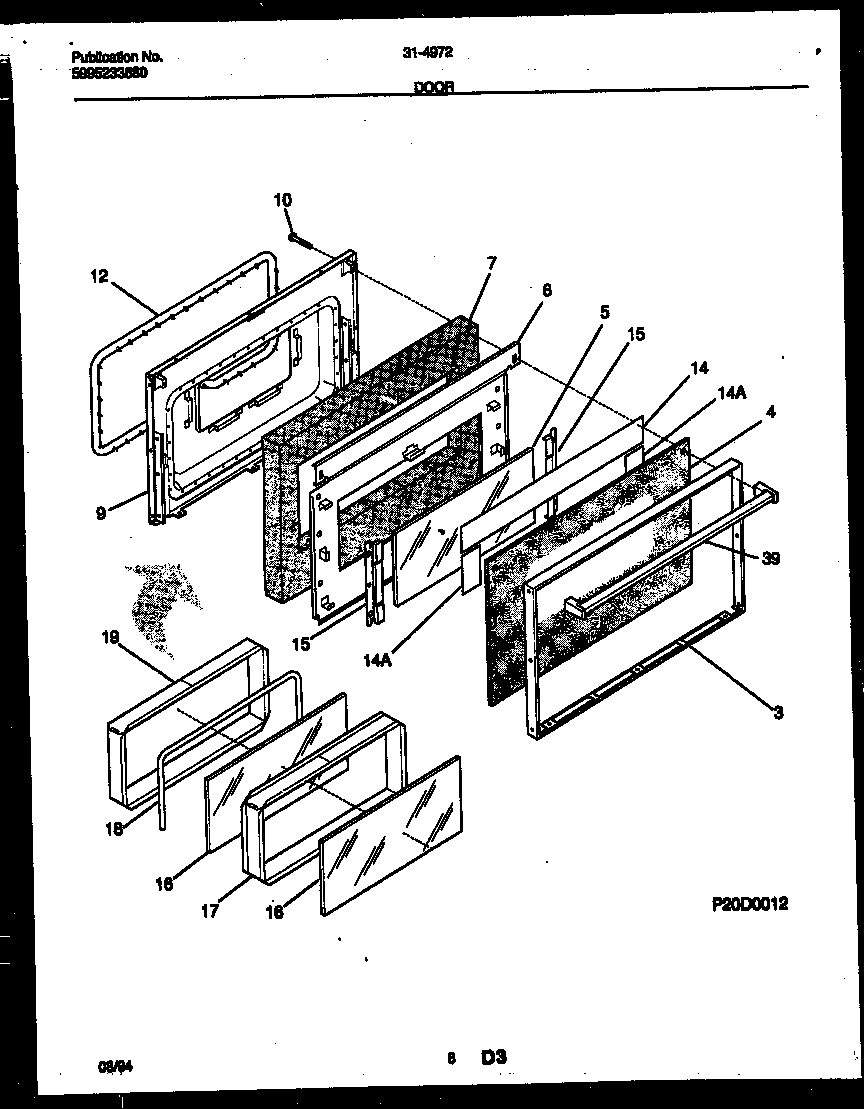

31-4972-00-01 05 – DOOR PARTS

31-4972-00-01 05 – DOOR PARTS

Written by

in

31-4972-00-01 05 – DOOR PARTS

Products

PositionProduct
*10585SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*10585WCI 5303269859
*105855303300265 Frigidaire Oven Screw
3WCI 5303291005
4WCI 316019702
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION, WHITE
7INSULATION-OVEN DOOR
9A5303271648 Frigidaire Oven Screw
9WCI 5303209515
10SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
125303131601 Frigidaire Oven Seal
14A5303208655 Frigidaire Reflector Assembly
14ALUM FOIL-B/G GLASS
15BRKT GLASS
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 5303209511
39WCI 316008301
