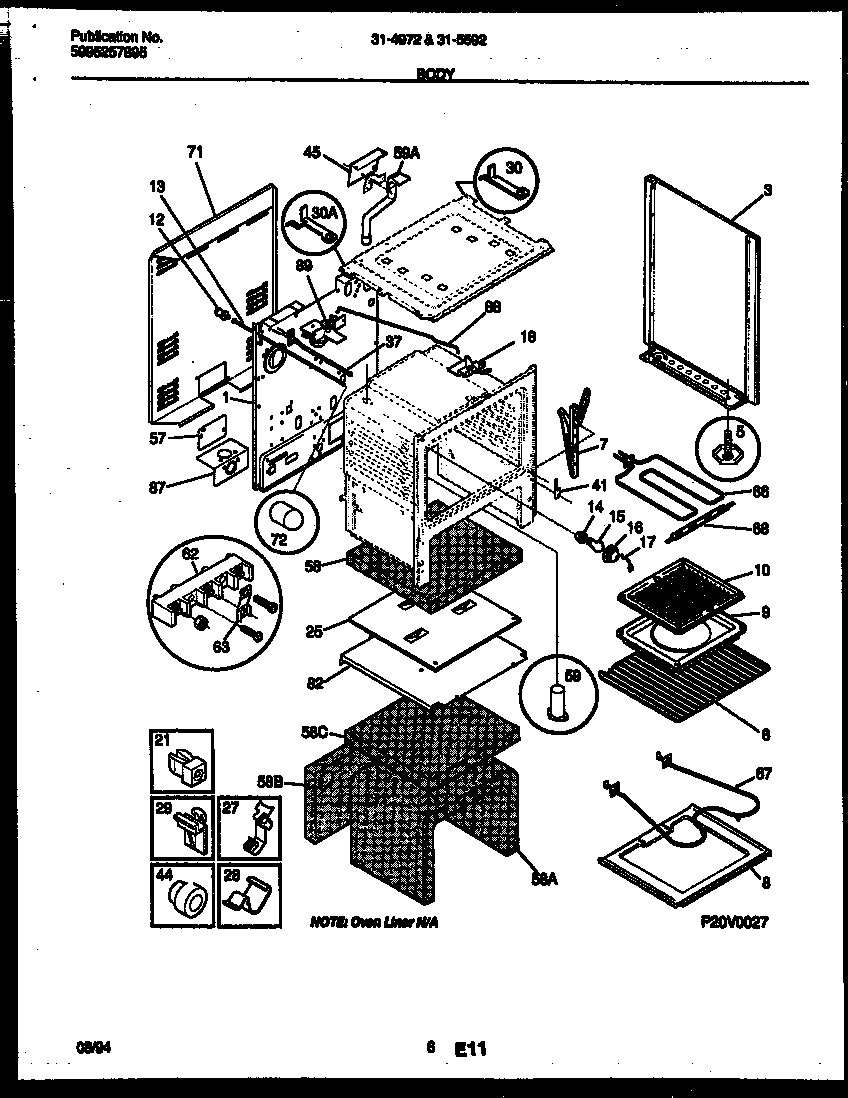

31-4972-00-02 04 – BODY PARTS

Products

PositionProduct
1WCI 316029405
3APNL-B/S-LH-WHITE
3PNL-B/S-RH-WHITE
3BSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
5SCREW-LEVELING
5AWCI 3934058
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 316073900
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
275303284616 Frigidaire Range Bulb Clip Thermostat
28Clip,wiring harness ,green ,main top
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30ABRACKET-HINGE, MAIN TOP, LH
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066101
57COVER-ACCESS
58CINSULATION, OVEN TOP
58BWCI 316054200
58AINSULATION, OVEN WRAPPER
58316403803 Frigidaire Insulation
59BBRACKET-MOUNTING,VENT TUBE
59AWCI 316023600
59WCI 316073602
