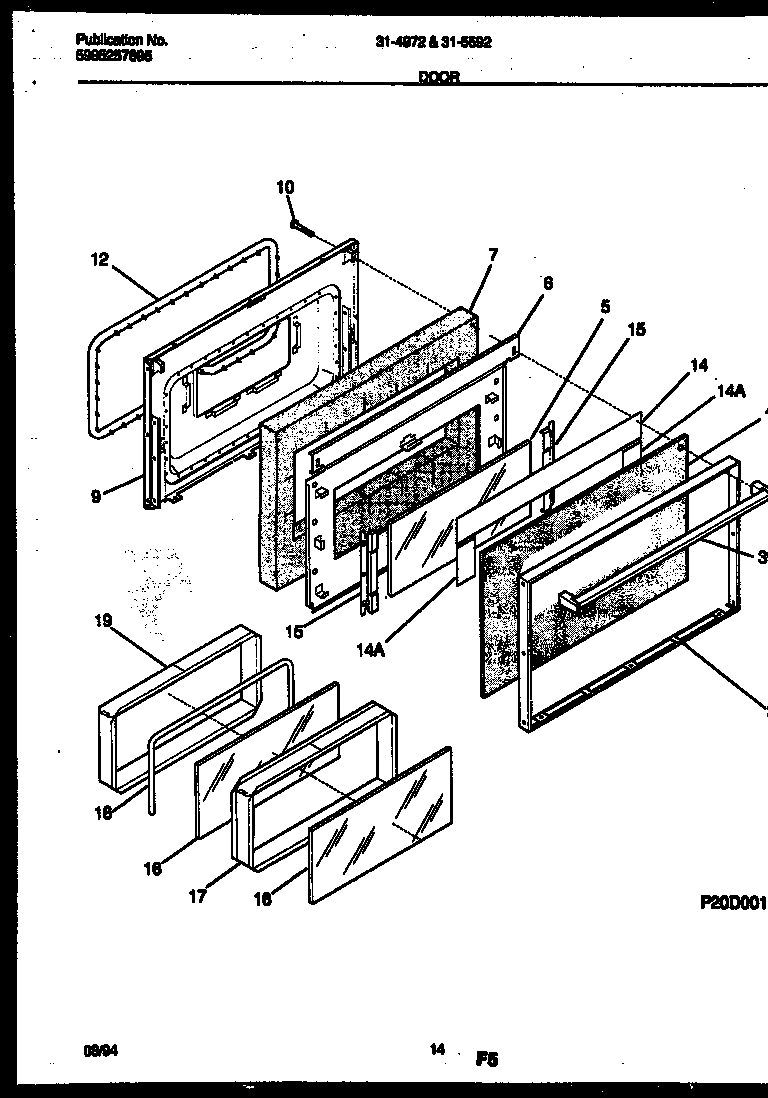

31-4972-00-02 08 – DOOR PARTSadmin2025-04-26T11:13:27+00:0031-4972-00-02 08 – DOOR PARTS
Products
| Position | Product |
|---|
| *10612 | RIVET-POP, WARING-PLATE |
| *10612 | WCI 316065300 |
| *10612 | SCREW, CR PAN HD SEMS, 8-32BP X 1.00 |
| *10612 | WCI 5303269859 |
| 3 | WCI 316067804 |
| 4 | WCI 316019718 |
| 5 | GLASS-OVEN DOOR, INNER |
| 6 | SHIELD-INSULATION, WHITE |
| 7 | INSULATION-OVEN DOOR |
| 9 | WCI 316066603 |
| 10 | SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375 |
| 12 | 5303131601 Frigidaire Oven Seal |
| 14 | ALUM FOIL-B/G GLASS |
| 14A | 5303208655 Frigidaire Reflector Assembly |
| 15 | BRACKET-GLASS MTG |
| 16 | GLASS-OVEN DOOR, HEAT BARRIER, (2) |
| 17 | WCI 5303209517 |
| 18 | SEAL-ROPE, 0.25 DIA |
| 19 | WCI 316067600 |
| 39 | WCI 316008301 |
