31-4979-00-01 02 – BACKGUARD

31-4979-00-01 02 – BACKGUARD

Written by

in

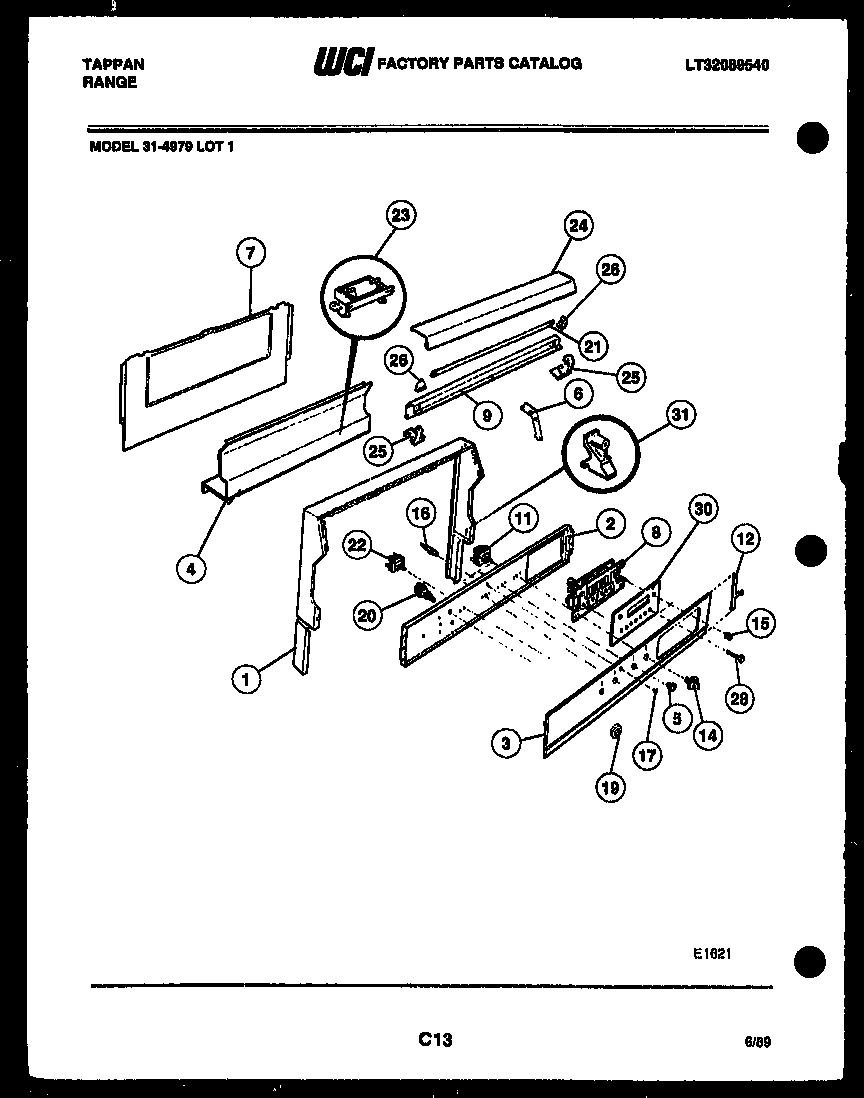

31-4979-00-01 02 – BACKGUARD

Products

PositionProduct
1WCI 3204862
2PLATE-INSTRUMENT MTG
3WCI 3204892
4WCI 3204829
5WCI 3204745
6AWCI 3204610
6WCI 3204609
7SHIELD-BACKGUARD,REAR WALL
8CLOCK EOC
9WCI 3131277
11ATHERMO, TOP TEMP CTRL, 8“ ELEM
11WCI 08010418
12ATRIM-GLASS RETAINER,RH
12TRIM-GLASS RETAINER,LH
14WCI 3204751
14AWCI 3204893
15KNOB ELECT OVEN CONTROL (1)
16LIGHT – IND 125 V (2)
17WCI 342T017P01
17AINDICATOR LIGHT
19BEZEL – SWITCH (2)
20WCI 3200479
21BULB-FLUOR
22SWITCH-FLUOR LIGHT
23WCI 3051115
24WCI 3204614
25ABRKT-FLUOR LT MTG RH
25BRKT-FLUOR LT MTG LH
26ARECEPTACLE-FLU LT RH
26RECEPTACLE-FLU LT LH
28BUTTON ELECTRONIC (8)
30WCI 3204866
31SUPPORT-BACKGUARD (2)
