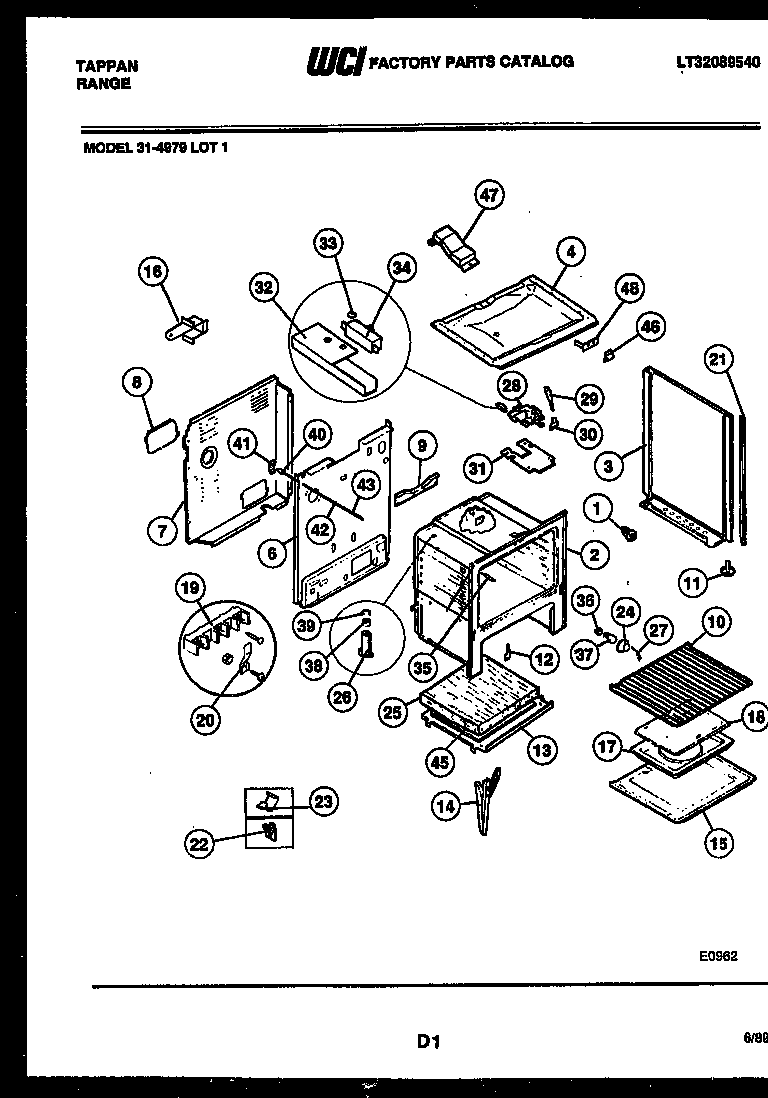

31-4979-00-01 03 – BODY PARTS

Products

Position	Product
*27188	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*27188	FASTENER-EDGE MTG (NOT ILLUSTRATED)
*27188	3203550 Frigidaire Oven Plug
*27188	ANTI-TIP KIT (NOT ILLUSTRATED)
*27188	BRKT, RANGE CABLE MTG (NON-ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3A	WCI 3201001
3	WCI 3201000
4	WCI 3051109
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	PANEL-OVEN BOTTOM
16	WCI 3203582
17	WCI 3013568
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08011708
21	TRIM-VERT B/S (2)
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	TRIM MAIN TOP LH
27B	INSULATION OVEN BACK (NON-ILLUSTRATED)
27D	SCREW – CHANNEL MTG (NON-ILLUSTRATED)
27	RETAINER-GLASS
27A	INSULATION, OVEN WRAPPER
27E	WCI 08067783
27C	3131903 Frigidaire Door/Drawer Bumper
28	WCI 3015361
29	WCI 3131357
30	WCI 3203218
30A	WCI 08013188
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FASTENER, PUSH ON (3)
34	SWITCH-LATCHING
35	5304497424 Frigidaire Oven Temperature Sensor Probe Kit
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08067810
39	WCI 08010606
40	WCI 3202622
41	BRKT LIGHT SWITCH
42	ROD-LIGHT SWITCH
43	WCI 3051251
45A	INSULATION, OVEN TOP
45	WCI 3200848
46	3205821 Frigidaire Clip
47A	WCI 3015337
47	WCI 3051254
48	WCI 3051242
48A	WCI 3051243
