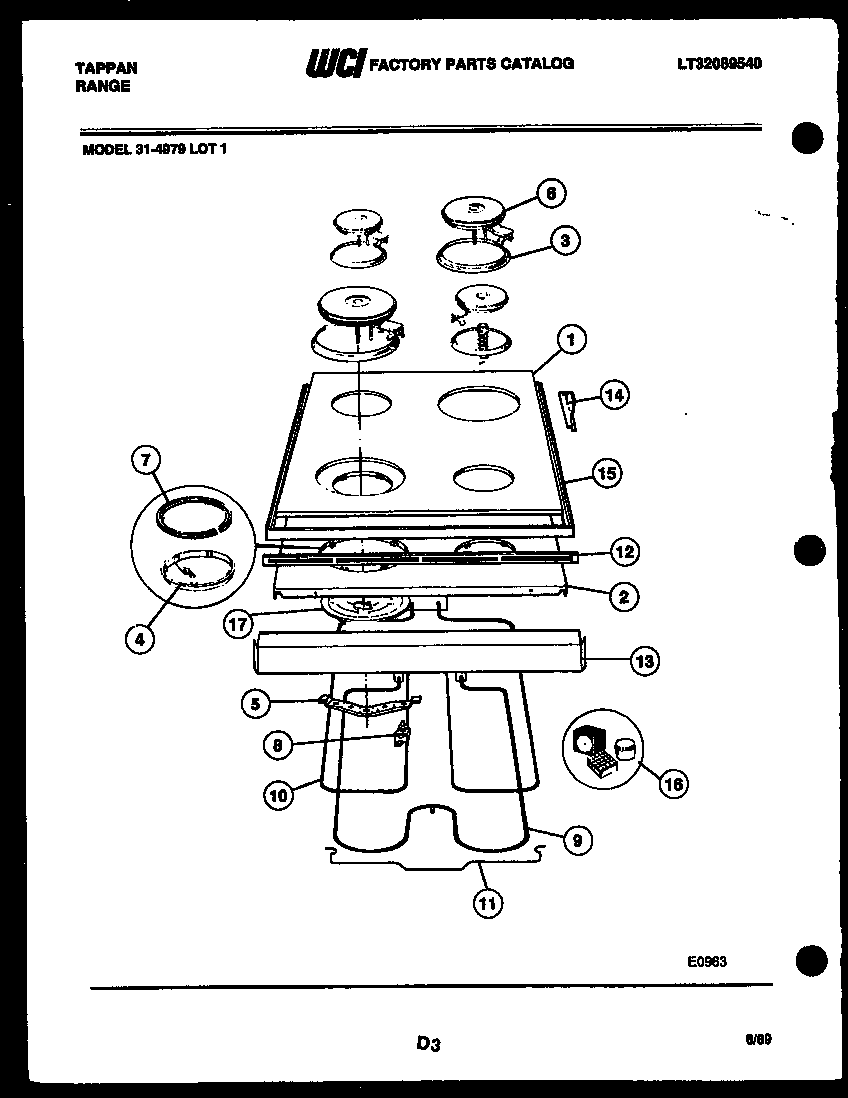

31-4979-00-01 04 – COOKTOP AND BROILER PARTS

31-4979-00-01 04 – COOKTOP AND BROILER PARTS

Written by

in

31-4979-00-01 04 – COOKTOP AND BROILER PARTS

Products

PositionProduct
1WCI 3051156
2WCI 3018329
3BTRIM-RING INNER LARGE
3ATRIM-RING OUTER MED
3TRIM-RING OUTER SMALL (2)
4BWCI 3051339
4ATRIM-RING INNER MED
4TRIM-RING INNER SMALL (2)
5CHANNEL-TOP ELEMENT MOUNTING LARGE
5ACHANNEL-TOP ELEMENT MOUNTING SMALL (2)
6BWCI 3051144
6ELEMENT-TOP SMALL (2)
6AGLASS-FRONT-BLACK
7WCI 3018330
7ASEAL-TOP ELEMENT MED
7BSEAL-TOP ELEMENT LARGE
8SWITCH-THERMAL PROTECTOR (4)
9316075103 Frigidaire Oven Bake Element
105303051140 Frigidaire Broil Element
11316203400 Frigidaire Oven Support
12WCI 355T377S01
13WCI 3204771
14ABRKT MAIN TOP HNG RH
14BRKT MAIN TOP HNG LH
15WCI 3204894
16CLEANER-ELEMENT
