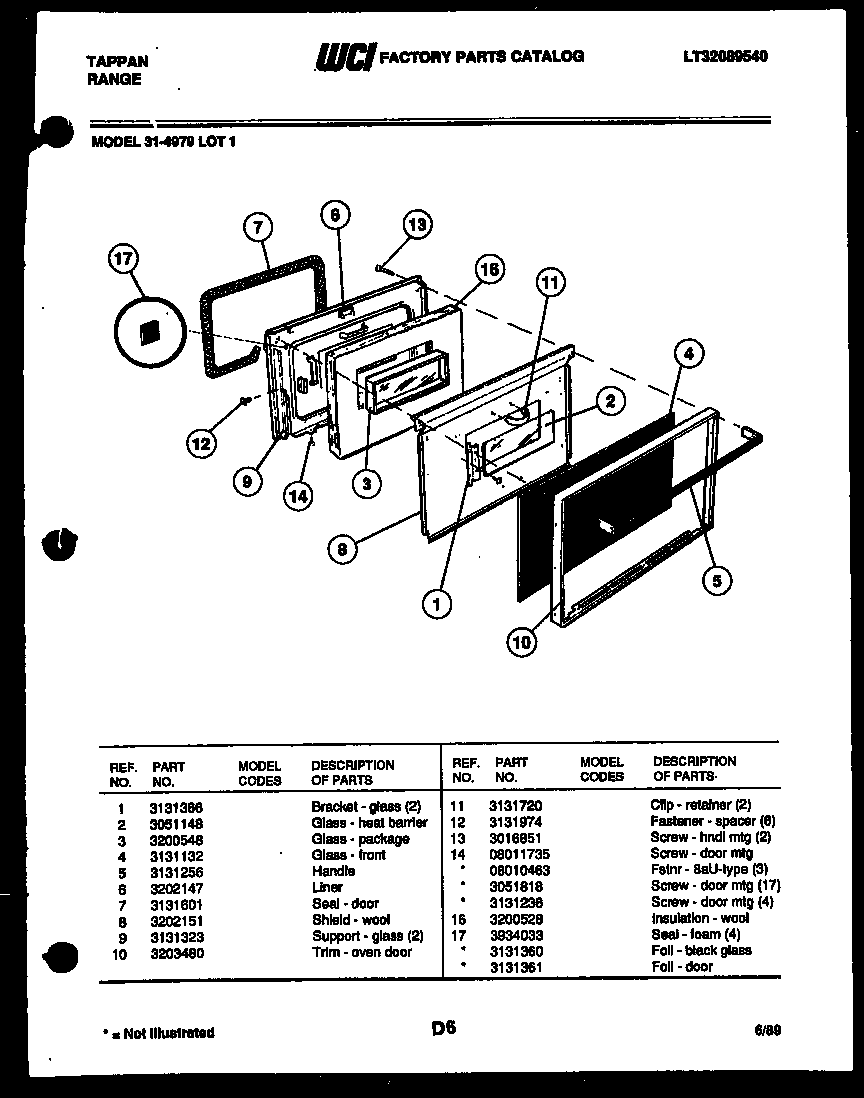

31-4979-00-01 06 – DOOR PARTS

31-4979-00-01 06 – DOOR PARTS

Written by

in

31-4979-00-01 06 – DOOR PARTS

Products

PositionProduct
*271935303208655 Frigidaire Reflector Assembly
*27193ALUM FOIL-B/G GLASS
1BRKT GLASS (2)
2WCI 3051148
3WCI 3200548
4GLASS FRNT
5WCI 3131256
6LINER
75303131601 Frigidaire Oven Seal
8WCI 3202151
9SUPPORT, GLASS
10WCI 3203480
11CLIP-RETAINING
12FSTNR. SPACER (6)
13WCI 3016851
14AWCI 08010463
14CWCI 3131236
14B5303300265 Frigidaire Oven Screw
14WCI 08011735
16INSUL OV DR W/ FOIL
17SEAL, FOAM (4)
