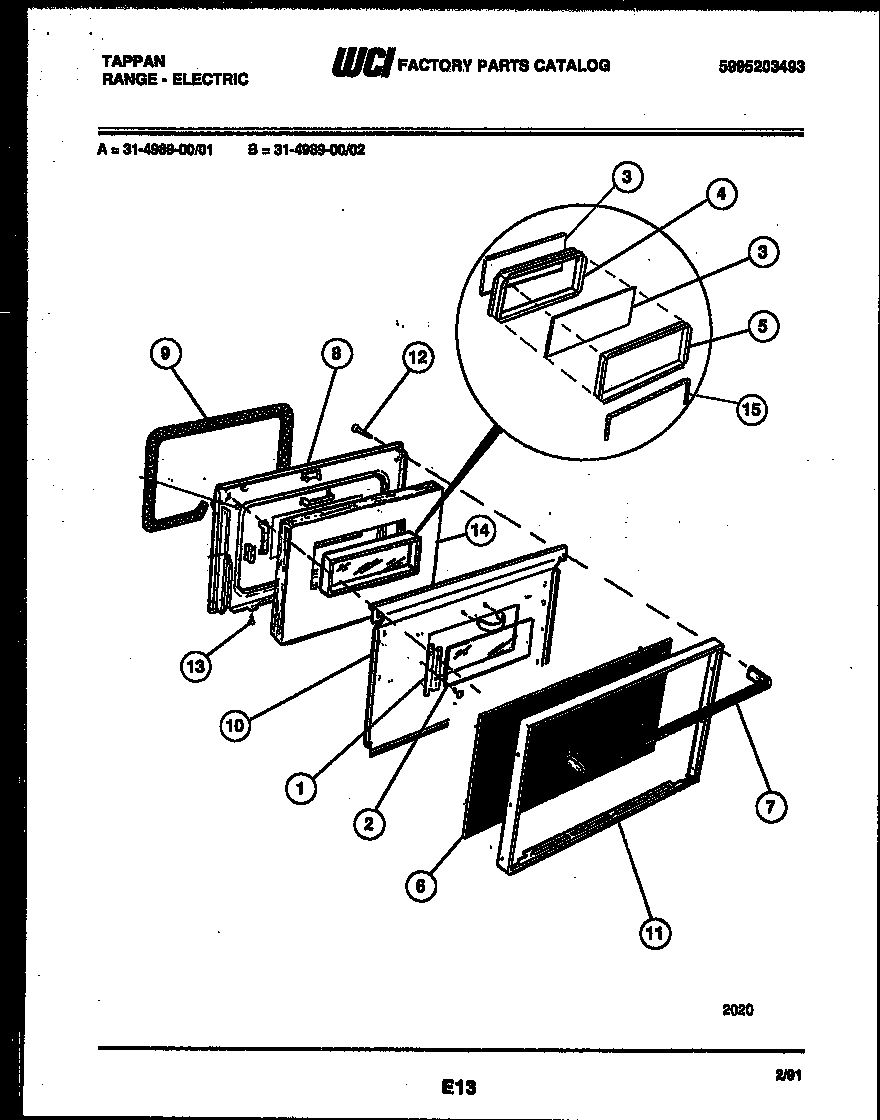

31-4989-00-01 05 – DOOR PARTS

Products

PositionProduct
*44760SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*447605303300265 Frigidaire Oven Screw
*44760FSTNR-NYLON SPACER (NON-ILLUSTRATED)
*44761ALUM FOIL-B/G GLASS
*447615303208655 Frigidaire Reflector Assembly
1BRKT GLASS
2GLASS-OVEN DOOR, INNER
3GLASS-OVEN DOOR, HEAT BARRIER, (2)
4WCI 5303209517
5WCI 5303209511
6WCI 5303269508
7HANDLE-OVEN DOOR
8WCI 5303209515
95303131601 Frigidaire Oven Seal
10SHIELD-INSULATION, WHITE
11WCI 5303269511
12WCI 3016851
135303271648 Frigidaire Oven Screw
14INSULATION-OVEN DOOR
15SEAL-ROPE, 0.25 DIA
