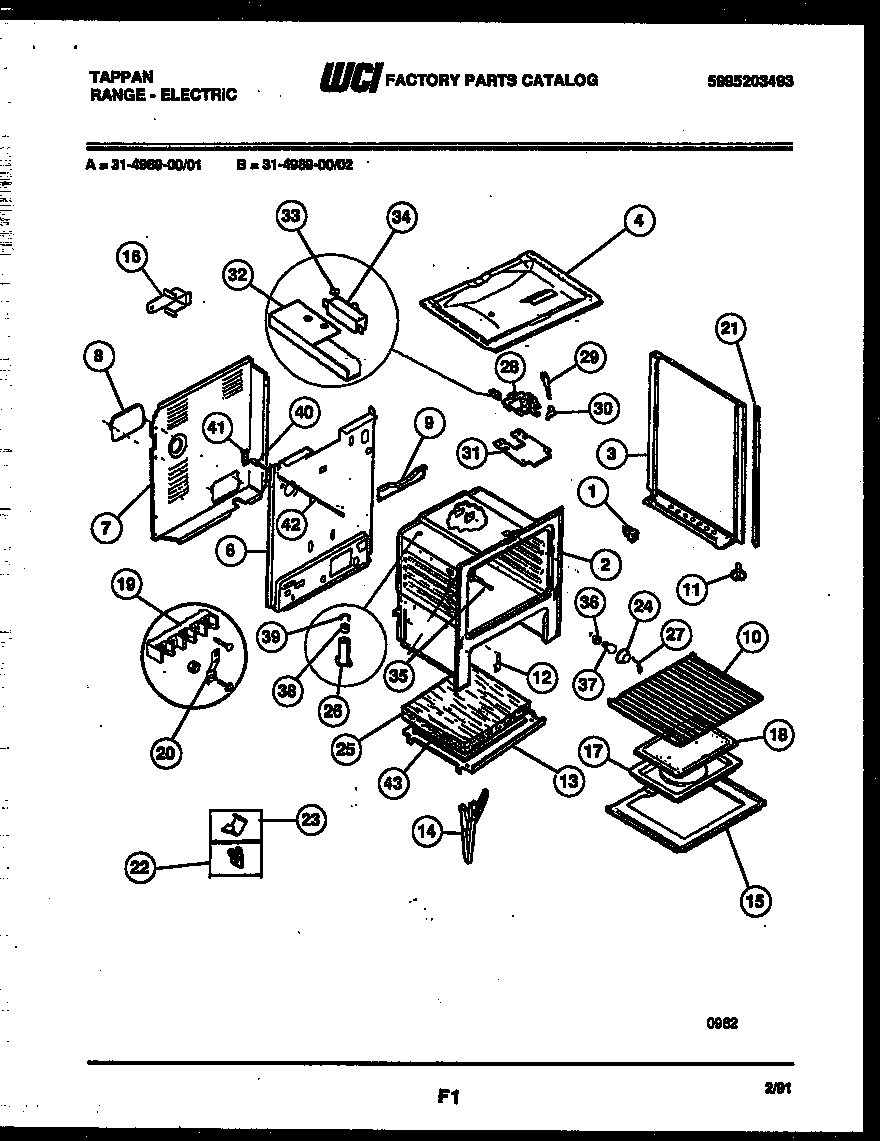

31-4989-00-02 06 – BODY PARTS

Products

Position	Product
*44766	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*44766	WCI 19100210123
*44766	STUD SPACER (2) (NON-ILLUSTRATED)
*44766	FASTENER-EDGE MTG (NOT ILLUSTRATED)
*44766	WCI 5303206618
*44766	INSULATION, OVEN TOP
*44766	ANTI-TIP KIT (NOT ILLUSTRATED)
*44766	3203550 Frigidaire Oven Plug
*44766	WCI 08067757
1	SPACER-BODYSIDE, (8)
3	WCI 3305620
3A	PNL-BODYSIDE RH-WHITE
4	WCI 5303271658
4	WCI 08067749
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	PANEL-OVEN BOTTOM
16	WCI 3203582
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE-GROUND STRAP
21	TRIM – VERTICAL B/S (2)
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	5303284616 Frigidaire Range Bulb Clip Thermostat
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	WCI 3051344
27E	316205500 Frigidaire Oven Nut
27B	INSULATION OVEN BACK (NON-ILLUSTRATED)
27	RETAINER-GLASS
27C	3131903 Frigidaire Door/Drawer Bumper
27A	INSULATION, OVEN WRAPPER
27D	SCREW-HINGE MTG. (6) (NON-ILLUSTRATED)
28	WCI 5303015361
29	WCI 5303131357
30A	WCI 08013188
30	WCI 5303210956
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FSTNR-PUSH ON
34	SWITCH-LATCHING
35	5304497424 Frigidaire Oven Temperature Sensor Probe Kit
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08067810
39	WCI 08010606
40	SWITCH-OVEN LITE DOOR
41	WCI 5303131289
42	WCI 5303209316
43	WCI 3200848
