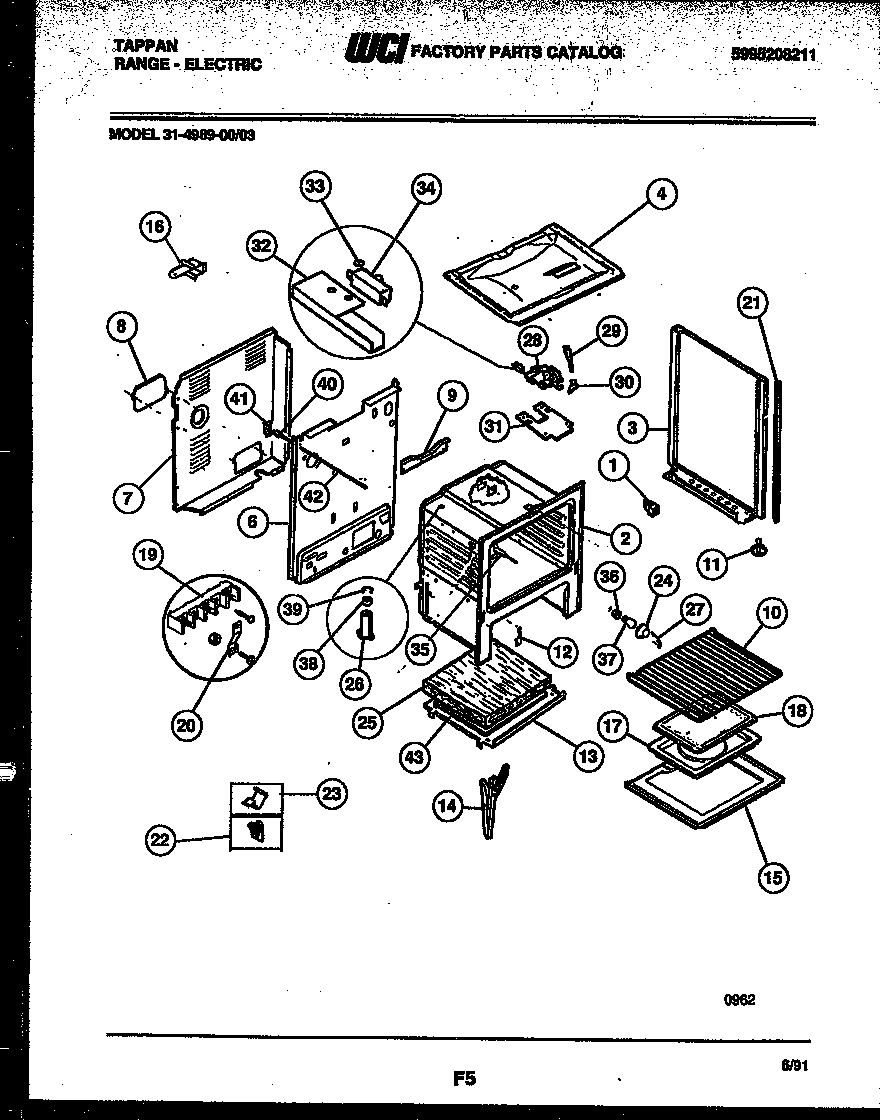

31-4989-00-03 06 – BODY PARTS

Products

Position	Product
*51754	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*51755	3203550 Frigidaire Oven Plug
*51755	ANTI-TIP KIT (NOT ILLUSTRATED)
*51755	WCI 5303206618
*51755	WCI 08067757
*51754	FASTENER-EDGE MTG (NOT ILLUSTRATED)
*51754	INSULATION, OVEN TOP
*51756	STUD SPACER (2) (NON-ILLUSTRATED)
*51755	WCI 1910210076
1	SPACER-BODYSIDE, (8)
3A	PNL-B/S-RH-WHITE
3	PNL-B/S-LH-WHITE
4	WCI 5303271658
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	PANEL-OVEN BOTTOM
16	WCI 3203582
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE-GROUND STRAP
21	TRIM – VERTICAL B/S (2)
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	5303284616 Frigidaire Range Bulb Clip Thermostat
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	WCI 3051344
27D	SCREW-HINGE MTG. (6) (NON-ILLUSTRATED)
27	RETAINER-GLASS
27A	INSULATION, OVEN WRAPPER
27B	INSULATION OVEN BACK (NON-ILLUSTRATED)
27C	3131903 Frigidaire Door/Drawer Bumper
27E	316205500 Frigidaire Oven Nut
28	WCI 5303015361
29	WCI 5303131357
30	WCI 5303210956
30A	WCI 08013188
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FSTNR-PUSH ON
34	SWITCH-LATCH
35	5304497424 Frigidaire Oven Temperature Sensor Probe Kit
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08067810
39	WCI 08010606
40	SWITCH-OVEN LITE DOOR
41	WCI 5303131289
42	WCI 5303209316
43	WCI 3200848
