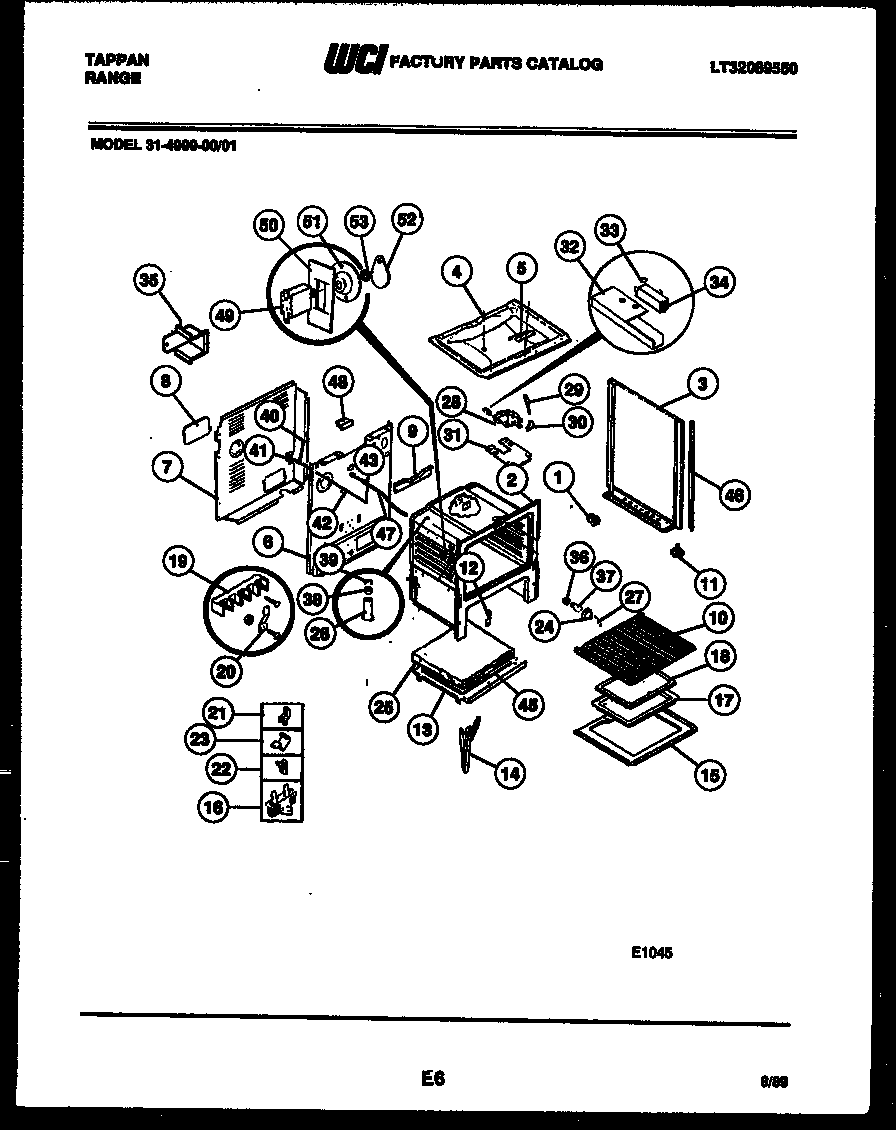

31-4999-00-01 06 – BODY PARTS

Products

Position	Product
*25982	3203550 Frigidaire Oven Plug
*25982	BRKT, RANGE CABLE MTG (NON-ILLUSTRATED)
*25982	ANTI-TIP KIT (NOT ILLUSTRATED)
*25982	MEAT PROBE
*25982	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3A	WCI 3201001
3A	B/S-RH-(WHITE)
3	WCI 3201000
3	B/S-LH-(WHITE)
4	WCI 3051109
5	WCI 3131101
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	PANEL-OVEN BOTTOM
16	FUSE-THERMAL CUTOUT
17	WCI 3013568
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08011708
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	WCI 3051344
27D	SCREW – CHANNEL MTG (NON-ILLUSTRATED)
27E	WCI 08067783
27A	INSULATION, OVEN WRAPPER
27	RETAINER-GLASS
27C	3131903 Frigidaire Door/Drawer Bumper
27B	INSULATION OVEN BACK (NON-ILLUSTRATED)
28	WCI 3015361
29	WCI 3131357
30A	WCI 08013188
30	WCI 3203218
31	WCI 3018004
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FASTENER, PUSH ON (3)
34	WCI 3204937
35	WCI 3203582
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08067810
39	WCI 08010606
40	WCI 3202622
41	BRKT LIGHT SWITCH
42	ROD-LIGHT SWITCH
43	WCI 3011924
45	WCI 3200848
46	TRIM-VERT B/S (2)
46A	INSULATION, OVEN TOP
47	5304497424 Frigidaire Oven Temperature Sensor Probe Kit
48	WCI 3018011
49	RECEPTACLE-PROBE
50	SHIELD-PROBE RECEPT
51	PLATE-RECEPTACLE MTG
52	COVER-PROBE RECEPT
53	WCI 479T069P35
