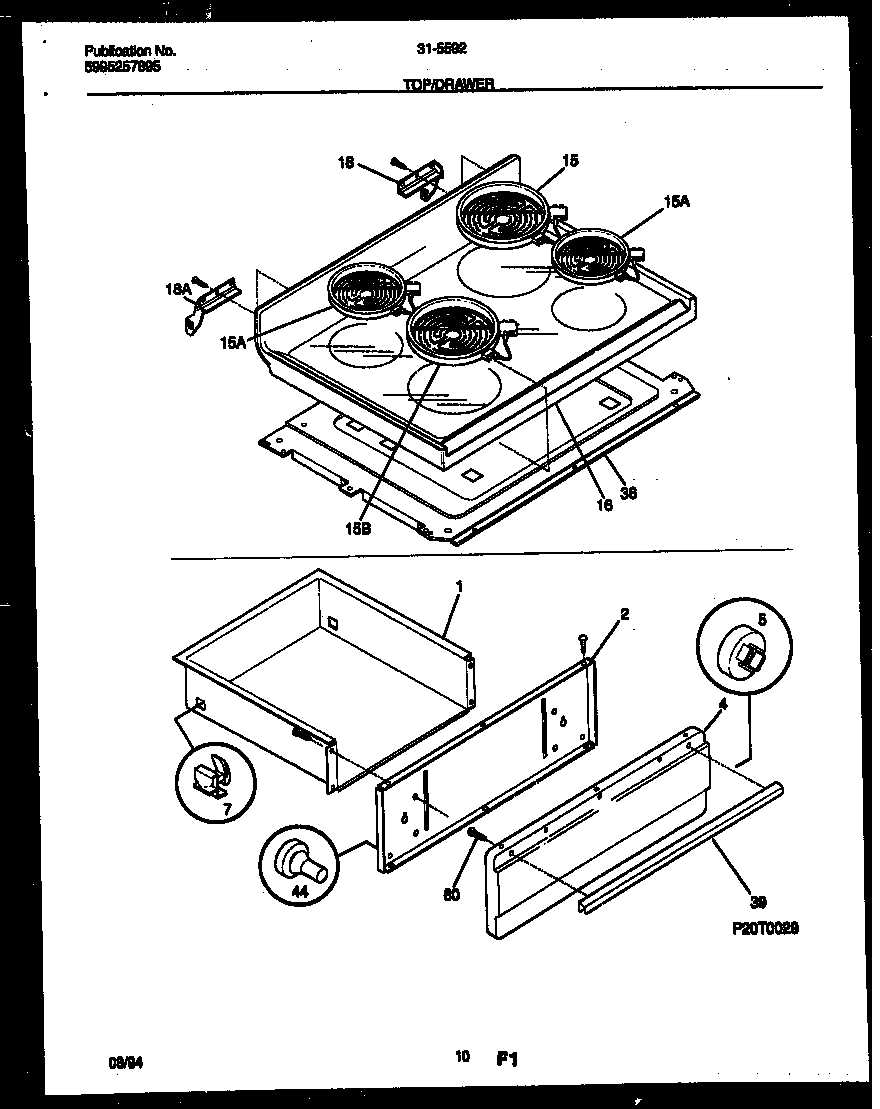

31-5592-00-01 06 – COOKTOP AND DRAWER PARTS

31-5592-00-01 06 – COOKTOP AND DRAWER PARTS

Written by

in

31-5592-00-01 06 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
*10612WCI 5303281584
*10612WCI 5309951550
1DRAWER-UTILITY
2SHIELD-PNL
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4PANEL-BROILER, WHITE
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15BWCI 316049700
15DWCI 5303305631
15CLIMITER SWITCH, LARGE/8 INCH (NOT ILLUSTRATED)
15ELIMITER SWITCH, LARGE/8“, DUAL COIL (NON-ILLUSTRATED)
15A318178110 Frigidaire Oven Range 6" Surface Element
15318198834 Frigidaire Oven Element
16BLENS-LIGHT/LAMP, INDICATOR
16ALIGHT/LAMP, IND, HOT SURFACE
16WCI 316035502
18AHINGE-MAIN TOP (LH)
18B131243700 Frigidaire Screw
18HINGE-MAIN TOP (RH)
36WCI 316033601
36AWCI 316023300
36BWCI 316041000
39HANDLE-DRAWER, WHITE
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
