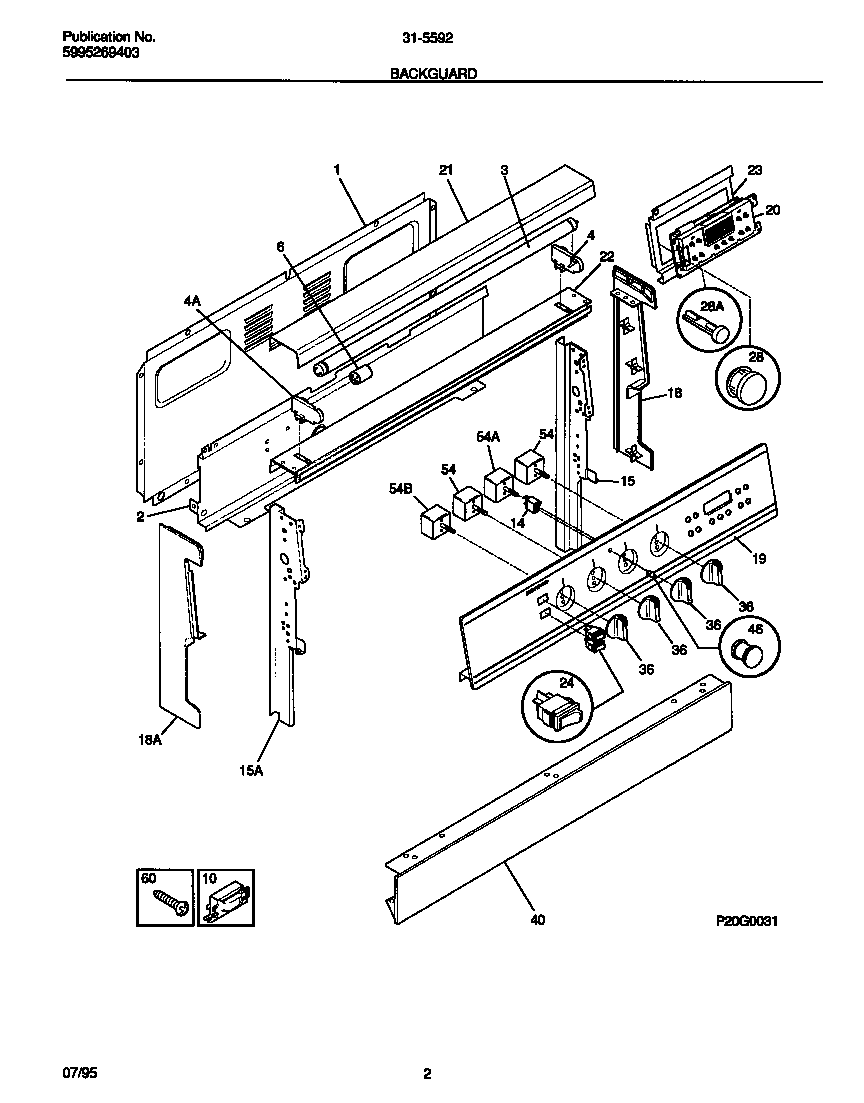

31-5592-00-03 02 – BACKGUARD

31-5592-00-03 02 – BACKGUARD

Written by

in

31-5592-00-03 02 – BACKGUARD

Products

PositionProduct
*87440316021105 Frigidaire Oven Screw
*87443WCI 5303281584
*87444SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
*87441LIGHT/LAMP, IND, HOT SURFACE
*87442LENS-LIGHT/LAMP, INDICATOR
1WCI 316081601
2WCI 316015905
3BULB-FLUOR
4RECEPTACLE-LAMP, RH
4ARECEPTACLE-LAMP, LH
6STARTER-LAMP
10WCI 5303051115
14316022503 Frigidaire Light Lamp P-1
15AWCI 316023111
15WCI 316023110
18AEND CAP, LH
18END CAP, RH
19WCI 316014708
20WCI 316064500
21WCI 316015300
22WCI 316015500
23WCI 316015007
245304527841 Frigidaire Oven Rocker Switch (Black)
28PUSH BUTTON, CLOCK/TIMER/EOC, BLACK
28AWCI 316036900
36WCI 316015200
40WCI 316009254
46WCI 316040200
545303935086 Frigidaire Oven Top Burner Switch Kit
54BWCI 316023700
54A316436001 Frigidaire Oven Range Infinite Burner Switch
60WCI 5303288574
