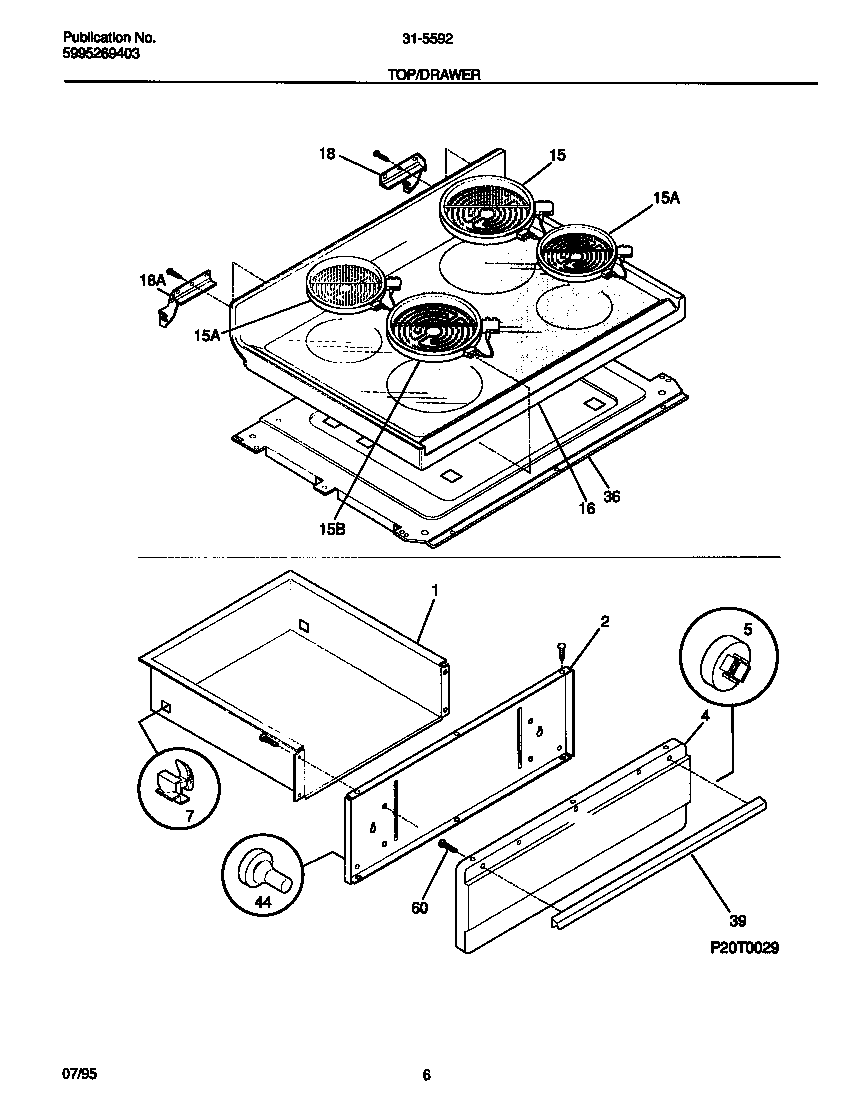

31-5592-00-03 04 – TOP/DRAWER

31-5592-00-03 04 – TOP/DRAWER

Written by

in

31-5592-00-03 04 – TOP/DRAWER

Products

PositionProduct
*87451RIVET-POP, WARING-PLATE
*87455WCI 5309951550
*87454131243700 Frigidaire Screw
*87452WCI 316001729
*87453WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4PANEL-BROILER, WHITE
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A318178110 Frigidaire Oven Range 6" Surface Element
15CLIMITER SWITCH, LARGE/8 INCH (NOT ILLUSTRATED)
15DWCI 5303305628
15BWCI 316049700
15318198834 Frigidaire Oven Element
16WCI 316035502
18AHINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
36AWCI 316023301
36BWCI 316041001
36WCI 316033610
39HANDLE-DRAWER, WHITE
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
