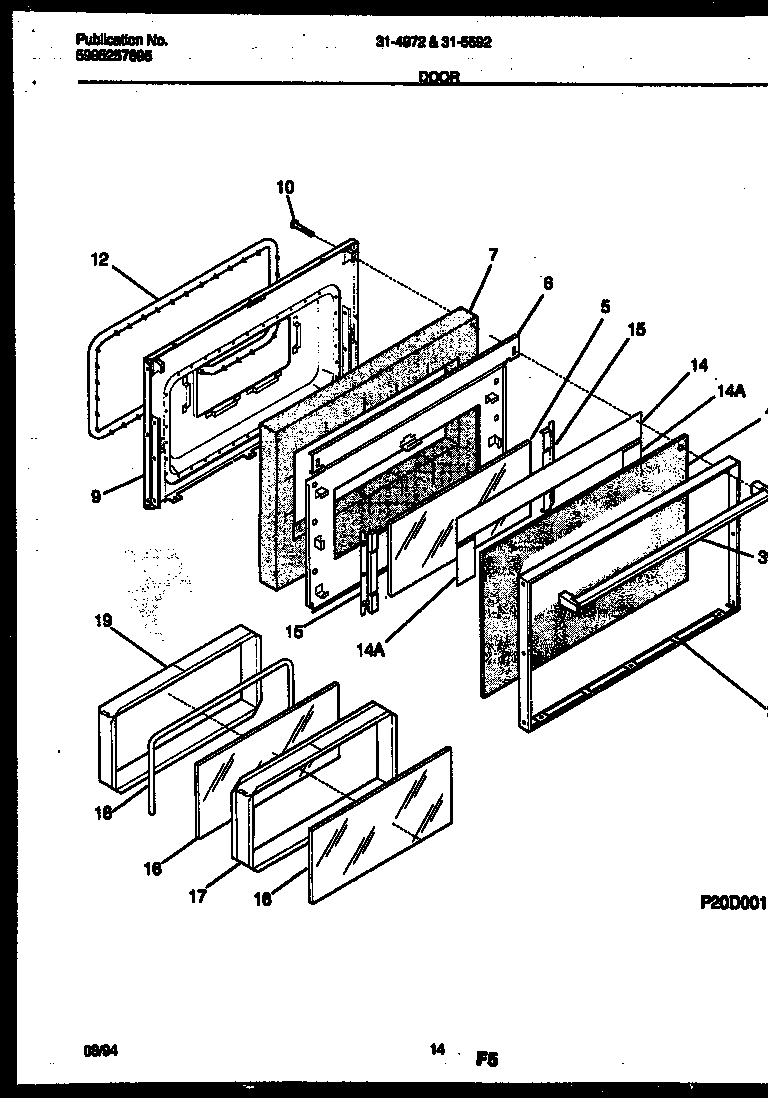

31-5592-18-01 08 – DOOR PARTS

31-5592-18-01 08 – DOOR PARTS

Written by

in

31-5592-18-01 08 – DOOR PARTS

Products

PositionProduct
*10612SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*10612WCI 5303269859
3WCI 5303209518
4WCI 316019706
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION
7INSULATION-OVEN DOOR
9WCI 5303209515
10SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
125303131601 Frigidaire Oven Seal
14A5303208655 Frigidaire Reflector Assembly
14REFLECTOR, ALUMINUM FOIL
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 5303209511
39HANDLE-DOOR, OVEN
