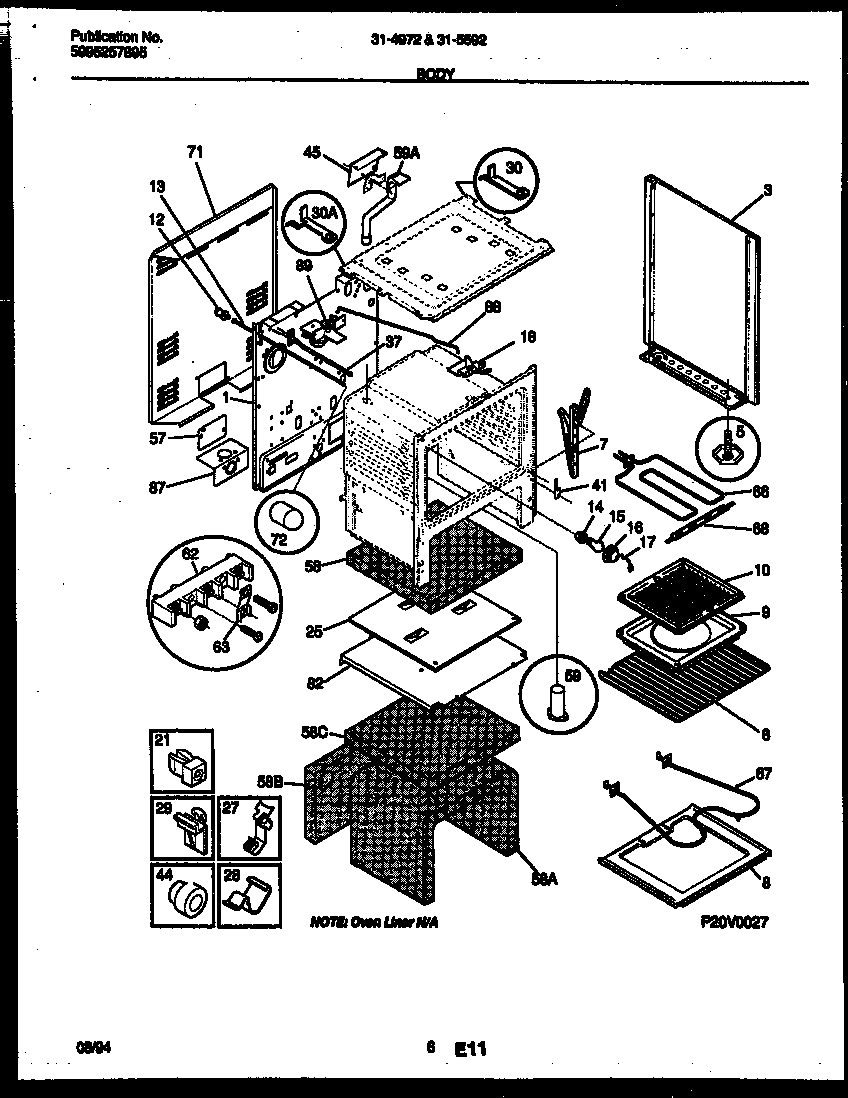

31-5592-18-02 04 – BODY PARTSadmin2025-04-26T11:14:11+00:0031-5592-18-02 04 – BODY PARTS
Products
| Position | Product |
|---|
| 1 | WCI 316029405 |
| 3A | WCI 5303269546 |
| 3 | WCI 5303269544 |
| 3B | SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED) |
| 5B | NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED) |
| 5A | WCI 3934058 |
| 5 | SCREW-LEVELING |
| 6 | 316067902 Frigidaire Oven Rack |
| 7 | WCI 316007002 |
| 8 | PANEL-OVEN BOTTOM |
| 9 | WCI 316073800 |
| 10 | WCI 316073900 |
| 12 | SWITCH-OVEN LIGHT, DOOR FRAME |
| 13 | WCI 316026800 |
| 14 | 316116400 Frigidaire Oven Light Socket |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16 | 5304524341 Frigidaire Lens |
| 17 | RETAINER-GLASS |
| 18 | WCI 316036300 |
| 21 | SPACER-BODYSIDE, (8) |
| 25 | WCI 3200848 |
| 28 | Clip,wiring harness ,green ,main top |
| 29 | 3051162 Frigidaire Oven Range Front Broiler Drawer Glide |
| 30 | BRACKET-HINGE, MAIN TOP RH |
| 30A | BRACKET-HINGE, MAIN TOP, LH |
| 37 | 5304497424 Frigidaire Oven Temperature Sensor Probe Kit |
| 41 | WCI 3131570 |
| 44 | 3131903 Frigidaire Door/Drawer Bumper |
| 45 | WCI 316066101 |
| 57 | COVER-ACCESS |
| 58C | INSULATION, OVEN TOP |
| 58B | WCI 316054200 |
| 58A | INSULATION, OVEN WRAPPER |
| 58 | 316403803 Frigidaire Insulation |
| 59B | BRACKET-MOUNTING,VENT TUBE |
| 59A | WCI 316023600 |
| 59 | WCI 316073602 |
