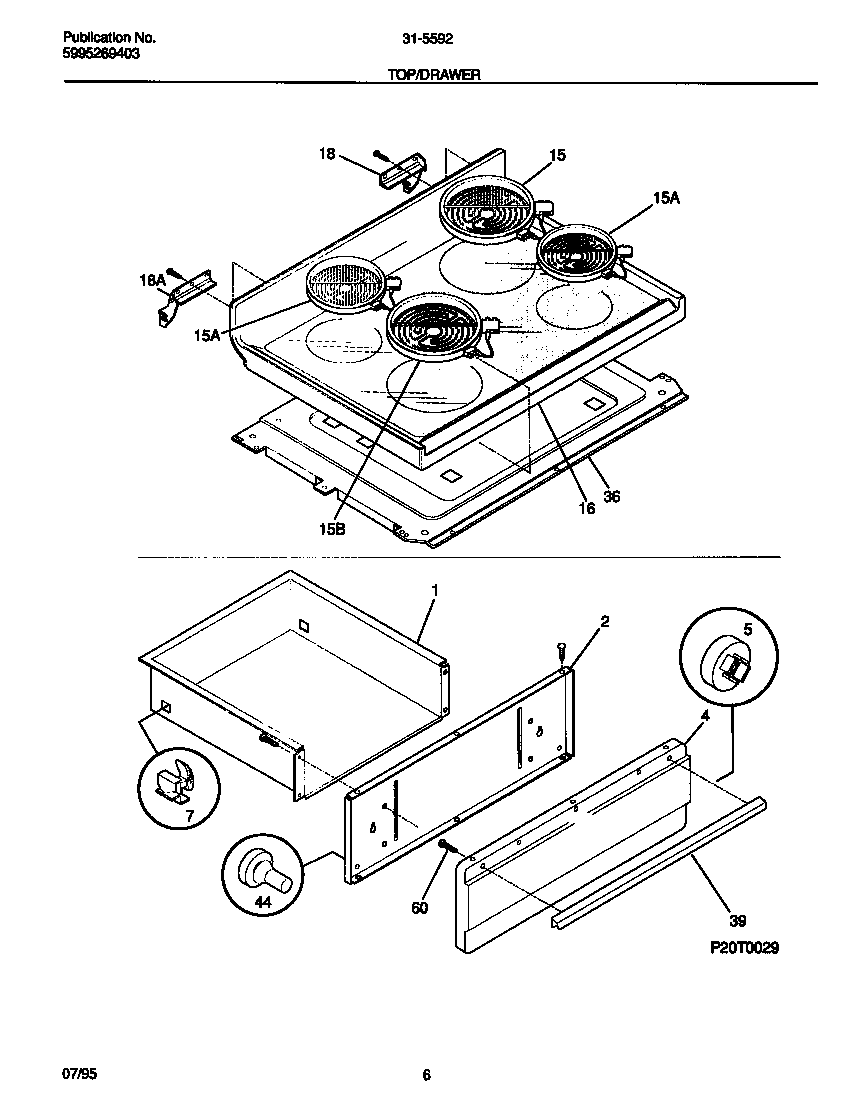

31-5592-18-04 04 – TOP/DRAWER

Products

Position	Product
*87451	RIVET-POP, WARING-PLATE
*87454	131243700 Frigidaire Screw
*87452	WCI 316001729
*87453	WCI 5303281584
*87455	WCI 5309951550
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316056207
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15B	WCI 316049700
15A	318178110 Frigidaire Oven Range 6" Surface Element
15C	LIMITER SWITCH, LARGE/8 INCH (NOT ILLUSTRATED)
15	318198834 Frigidaire Oven Element
15D	WCI 5303305628
16	WCI 316035504
18	HINGE-MAIN TOP (RH)
18A	HINGE-MAIN TOP (LH)
36B	WCI 316041001
36A	WCI 316023301
36	WCI 316033610
39	WCI 316019504
44	3131903 Frigidaire Door/Drawer Bumper
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
