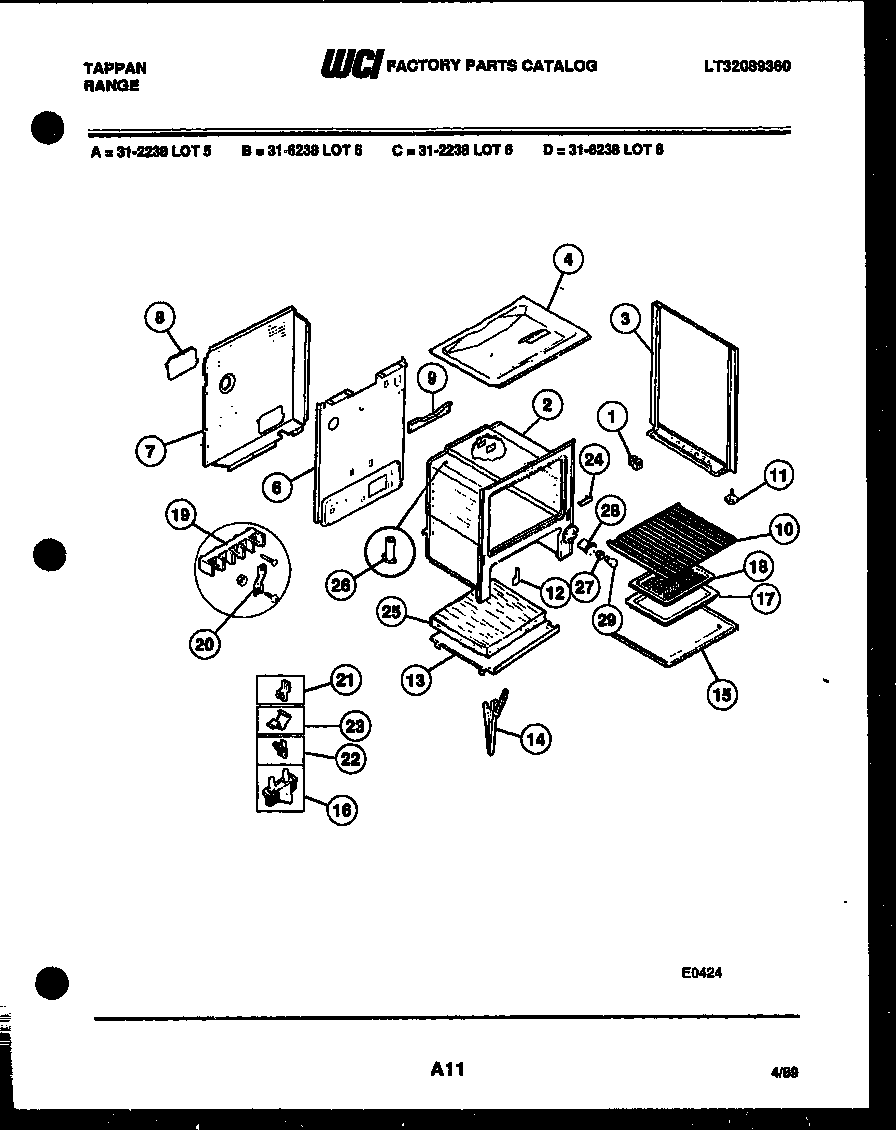

31-6238-23-06 02 – BODY PARTS

Products

Position	Product
*20296	SCREW-HNG MTG (6) (NON-ILLUSTRATED)
*20296	ANTI-TIP KIT (NOT ILLUSTRATED)
*20296	3131903 Frigidaire Door/Drawer Bumper
*20295	INSULATION-BACK (NON-ILLUSTRATED)
*20295	WCI 3131201
*20296	NUT-HEX BRASS (6) (NON-ILLUSTRATED)
1	WCI 665T188P02
3	PNL B/S-RH (ALMOND)
3A	PNL B/S-LH (ALMOND)
4	WCI 3017926
6	WCI 3203404
7	SHIELD, LOWER WALL
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	COVER-HINGE (2)
13	SHIELD, OVEN BOTTOM
14	WCI 3131243
15	WCI 3051104
16	FUSE-THERMO CUTOUT
17	PAN, BROILER
18	INSERT-BROILR PAN LOT 2,3
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 711T048P01
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	COVER-FRONT
25	316403803 Frigidaire Insulation
26	WCI 3051344
27	316116400 Frigidaire Oven Light Socket
28	TUBE-OVEN LIGHT
29	316538904 Frigidaire Oven Lamp Light
