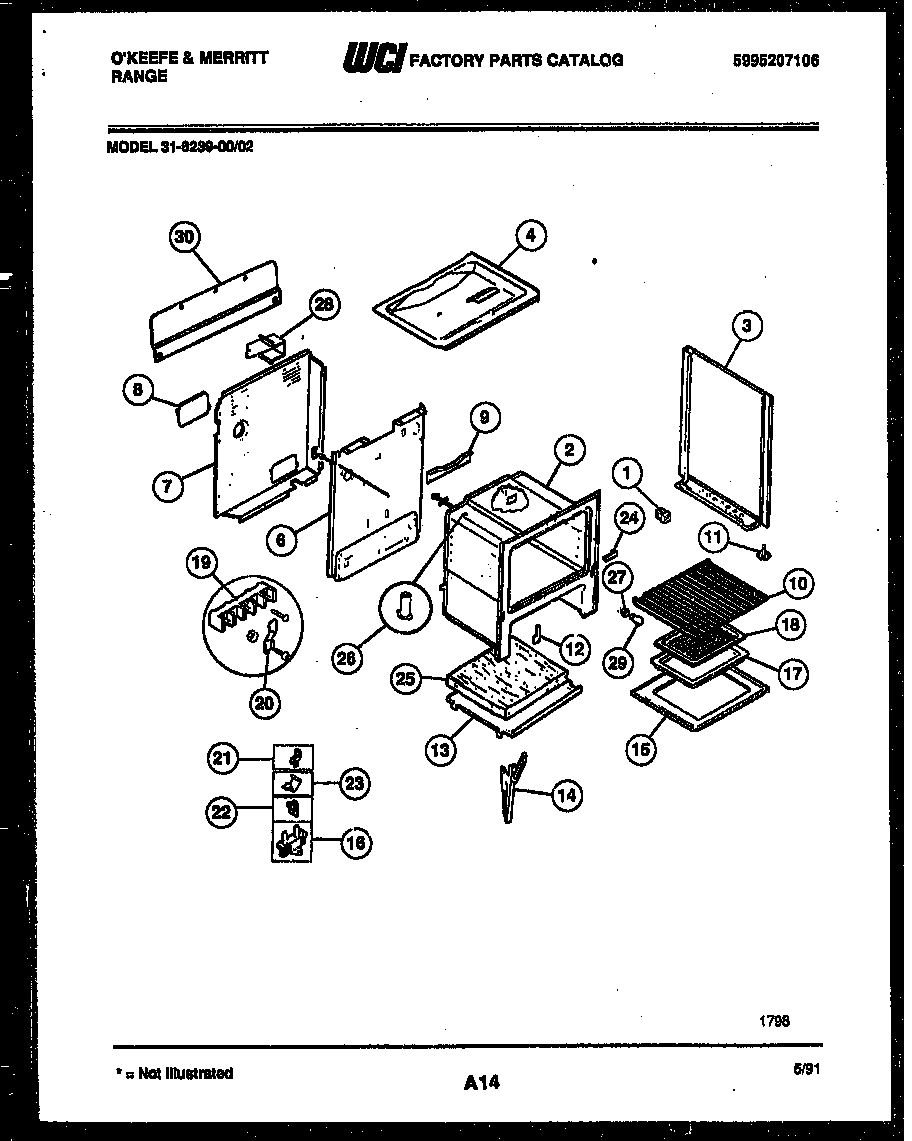

31-6239-23-02 04 – BODY PARTS

Products

Position	Product
*49620	WCI 19100180314
1	SPACER-BODYSIDE, (8)
3	WCI 5303269545
3A	WCI 5303269543
4	WCI 3017926
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	CHANL-DR HNG (2)
15	PANEL-OVEN BOTTOM
16	FUSE-THERMO CUTOUT
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE-GROUND STRAP
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	COVER-OVEN FRONT
25	316403803 Frigidaire Insulation
26	WCI 3051344
27	316116400 Frigidaire Oven Light Socket
28	WCI 3203582
29G	WCI 5303206618
29	316538904 Frigidaire Oven Lamp Light
29A	INSULATION, OVEN WRAPPER
29E	316205500 Frigidaire Oven Nut
29B	INSUL – OVEN BACK (NON-ILLUSTRATED)
29F	ANTI-TIP KIT (NOT ILLUSTRATED)
29H	3203550 Frigidaire Oven Plug
29D	SCREW-HINGE MTG. (6) (NON-ILLUSTRATED)
29C	3131903 Frigidaire Door/Drawer Bumper
30	WCI 3131252
