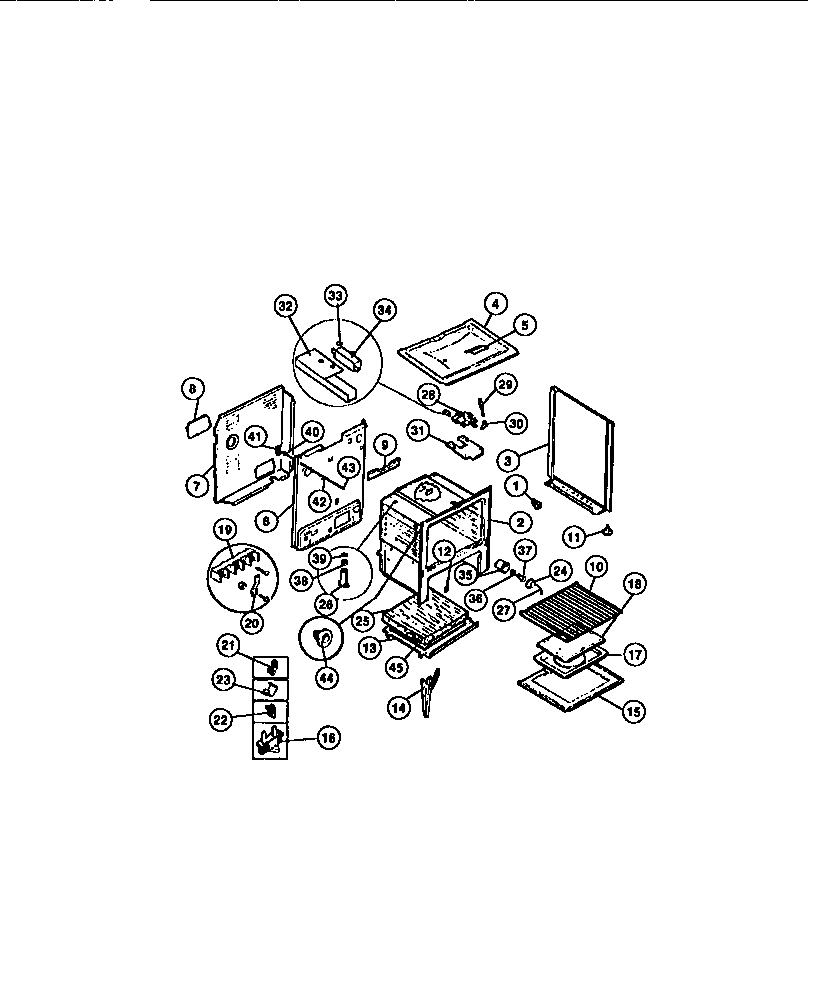

31-6758-66-02 06 – BASIC BODYadmin2025-04-26T11:13:17+00:0031-6758-66-02 06 – BASIC BODY
Products
| Position | Product |
|---|
| *81562 | SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED) |
| *81566 | WCI 3131305 |
| *81563 | FASTENER-EDGE MTG (NOT ILLUSTRATED) |
| *81564 | INSULATION, OVEN WRAPPER |
| 1 | SPACER, BODYSIDE (8) |
| 3A | PNL B/S-LH (WHEAT) |
| 3 | PNL B/S-RH (WHEAT) |
| 4 | WCI 3051109 |
| 5 | WCI 3131101 |
| 6 | WCI 3131567 |
| 7 | WCI 3051400 |
| 8 | COVER, LOWER ACCESS |
| 9 | COVER-FLUE |
| 10 | 316067902 Frigidaire Oven Rack |
| 11 | WCI 636M004P01 |
| 12 | WCI 3131570 |
| 13 | SHIELD, OVEN BOTTOM |
| 14 | CHANL-DR HNG (2) |
| 15 | WCI 3051104 |
| 16 | FUSE-THERMAL CUTOUT |
| 17 | PAN, BROILER |
| 18 | WCI 3131356 |
| 19 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 20 | WCI 711T048P01 |
| 21 | CLIP-TUBING (2) |
| 22 | 3051162 Frigidaire Oven Range Front Broiler Drawer Glide |
| 23 | WCI 3051367 |
| 24 | WCI 3131298 |
| 25 | 316403803 Frigidaire Insulation |
| 26 | WCI 3051344 |
| 27C | 3131903 Frigidaire Door/Drawer Bumper |
| 27 | WCI 3131104 |
| 27A | INSULATION, OVEN TOP |
| 27B | INSUL OVEN BACK (NON-ILLUSTRATED) |
| 28 | WCI 3015361 |
| 29 | WCI 3051473 |
| 30 | KNOB, LATCH |
| 30A | SCREW-SET KNOB MTG (NON-ILLUSTRATED) |
| 31 | SHIELD-LATCH |
| 32 | SHIELD-LATCH (NON-ILLUSTRATED) |
| 33 | WCI 241T001P01 |
| 34 | WCI 3131672 |
| 35 | WCI 3131363 |
| 36 | 316116400 Frigidaire Oven Light Socket |
| 37 | 316538904 Frigidaire Oven Lamp Light |
| 38 | WCI 244T041P01 |
| 39 | RETAIN, CATALYST |
| 40 | WCI 695T128P01 |
| 41 | BRKT LIGHT SWITCH |
| 42 | ROD-LIGHT SWITCH |
| 43 | WCI 174T329P01 |
| 44 | BUTTON-REMOTE SW |
| 45 | WCI 3200848 |
