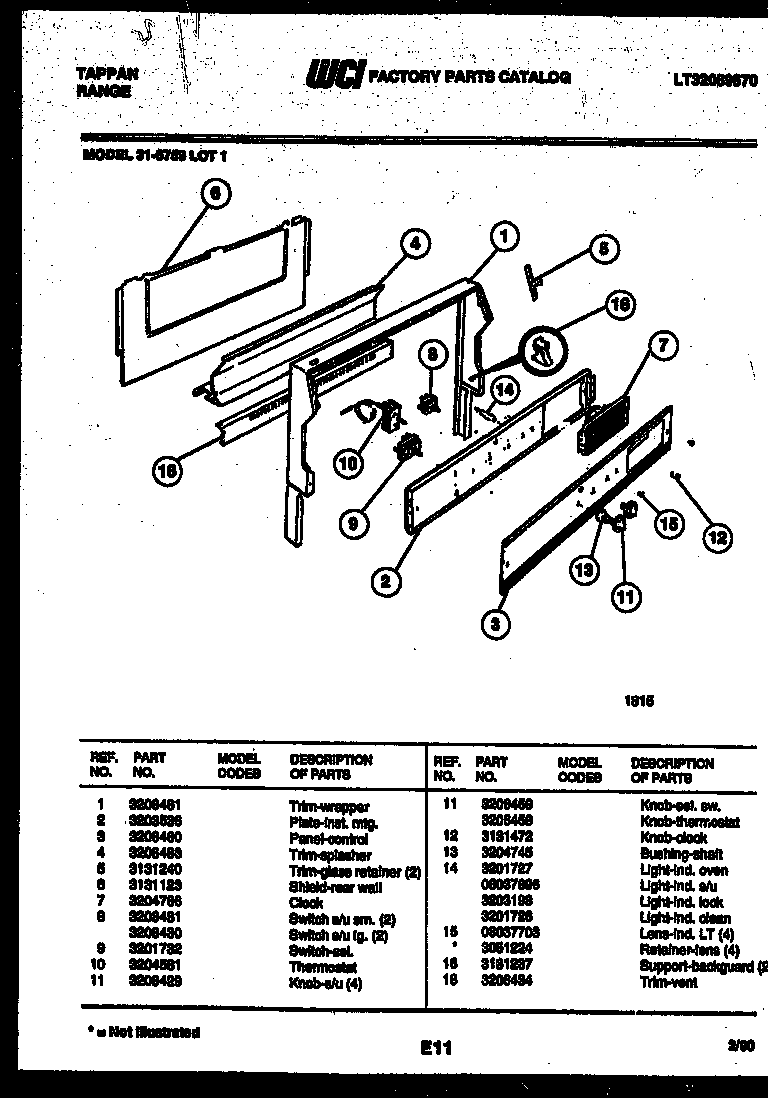

31-6759-00-01 07 – BACKGUARD

31-6759-00-01 07 – BACKGUARD

Written by

in

31-6759-00-01 07 – BACKGUARD

Products

PositionProduct
1WCI 3206461
2PLATE-INSTRUMENT MTG
3GLASS C/P
4WCI 3206433
5TRIM-GLASS RTNR. LH & RH
6SHIELD-BACKGUARD,REAR WALL
7ELECTRICAL CLOCK
8A5303935086 Frigidaire Oven Top Burner Switch Kit
9WCI 3201732
10THERMOSTAT-OVEN
11WCI 3206459
11AWCI 3206458
11WCI 3206429
12KNOB-CLOCK
13WCI 3204745
14BLIGHT-IND. LOCK
14ALIGHT – IND 125 V (2)
14INDICATOR LITE, OVEN (BLACK)
14CLIGHT/LAMP, INDICATOR, BLUE, 250 V
15ARETAINER-LENS
15WCI 08037703
16SUPPORT-BACKGUARD (2)
18WCI 3206434
