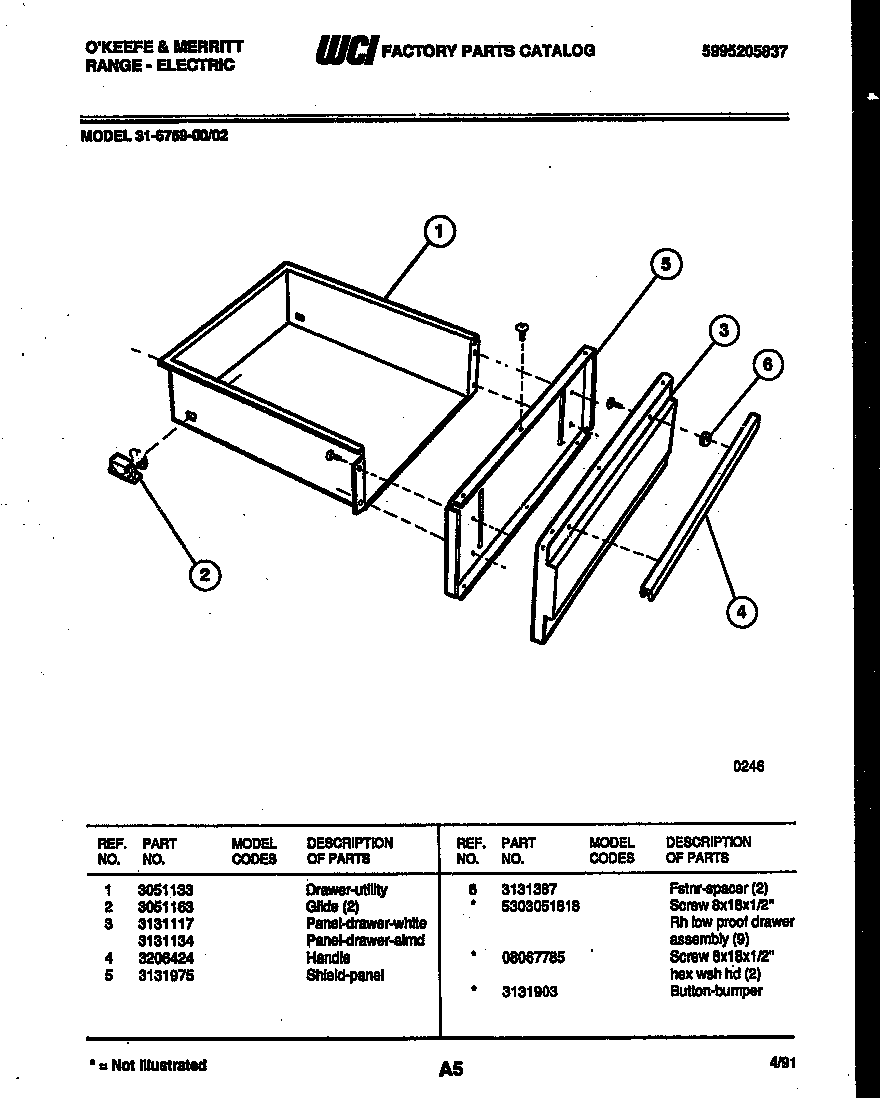

31-6759-00-02 05 – DRAWER PARTS

Written by

Products

Position	Product
*46875	5303300265 Frigidaire Oven Screw
*46875	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*46875	3131903 Frigidaire Door/Drawer Bumper
1	WCI 3051133
2	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
3	PANEL – BROILER ALMD
3	PNL-DRAWER (WHTE)
4	HANDLE – BLACK
5	SHIELD-PNL
6	FSTNR, SPACER (2)
