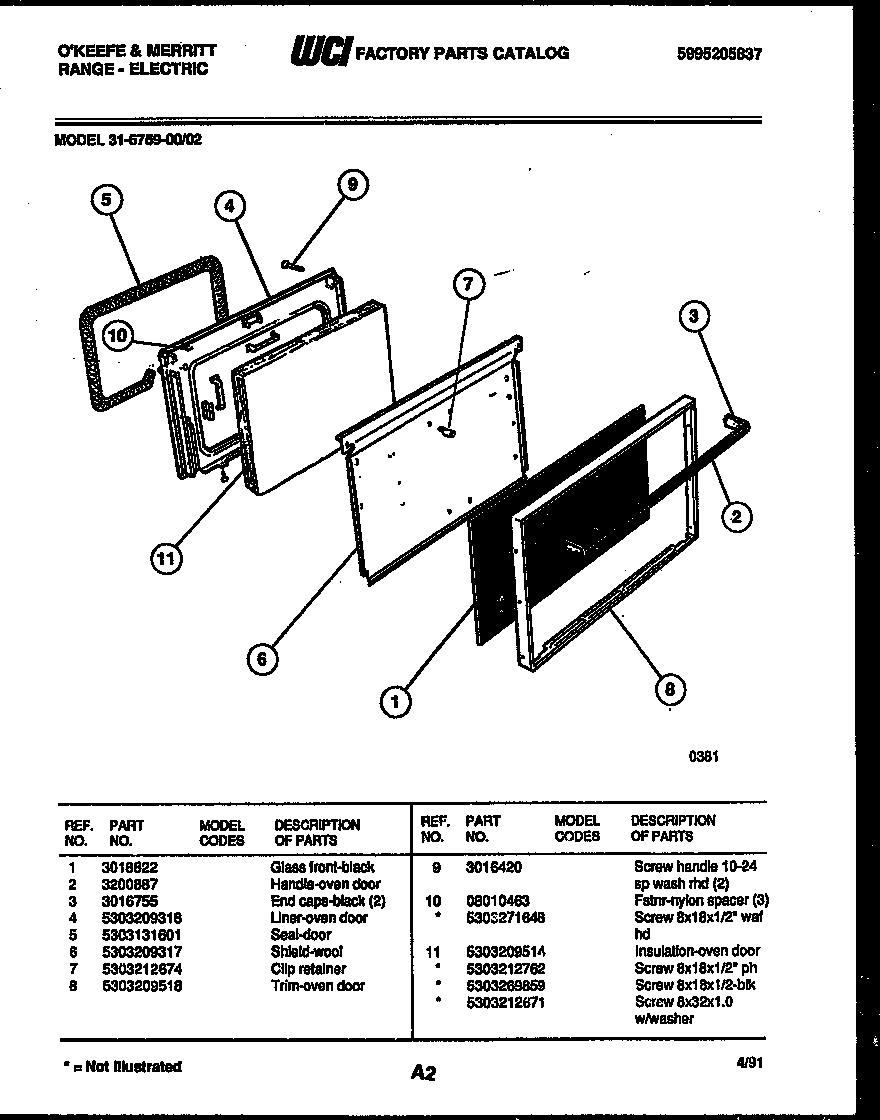

31-6759-23-02 02 – DOOR PARTS

31-6759-23-02 02 – DOOR PARTS

Written by

in

31-6759-23-02 02 – DOOR PARTS

Products

PositionProduct
*46873SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*46873WCI 5303269859
*468735303300265 Frigidaire Oven Screw
1WCI 3018822
2HANDLE-OVEN DOOR
3316137003 Frigidaire Range / Cooktop End Cap
4LINER-OVEN DOOR
55303131601 Frigidaire Oven Seal
6WCI 5303209317
7FSTNR-NYLON SPACER (NON-ILLUSTRATED)
8WCI 5303209518
9SCREW – HANDLE (2)
10WCI 08010463
10A5303271648 Frigidaire Oven Screw
11INSULATION-OVEN DOOR
