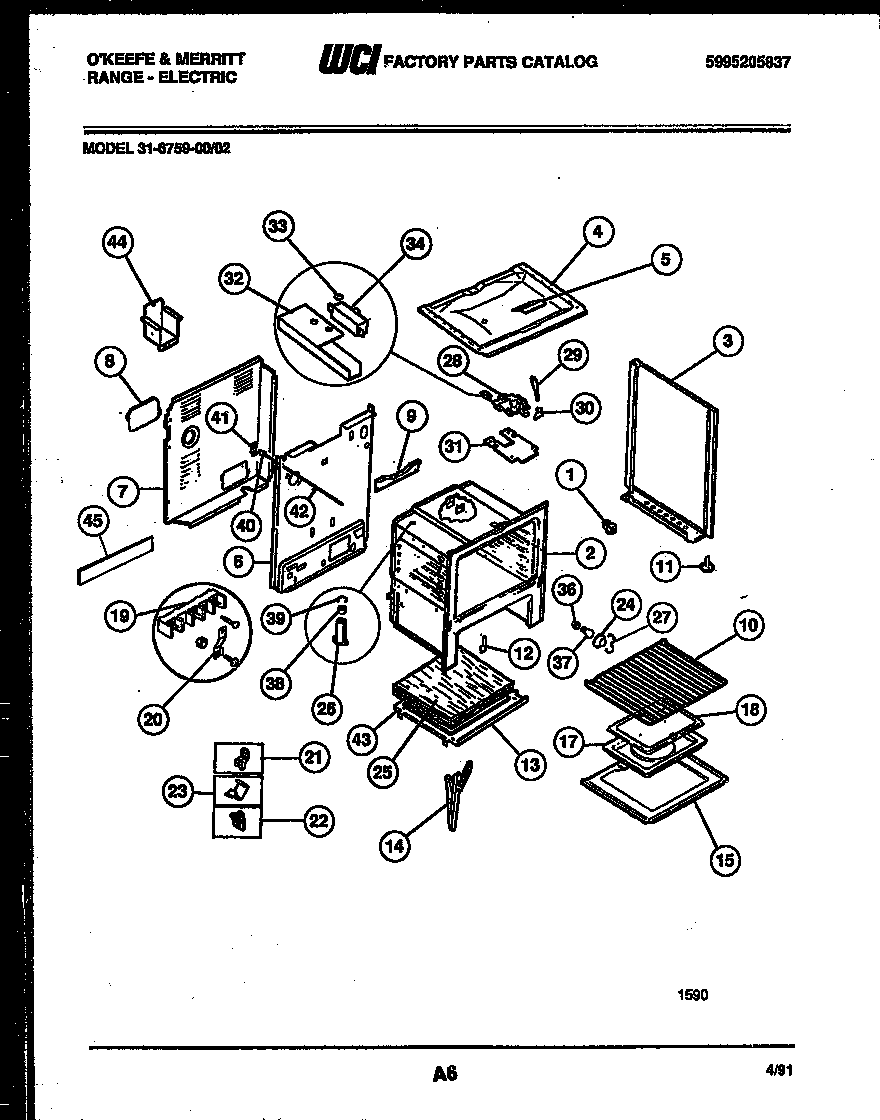

31-6759-23-02 06 – BODY PARTS

31-6759-23-02 06 – BODY PARTS

Written by

in

31-6759-23-02 06 – BODY PARTS

Products

PositionProduct
*46879DIAGRAM WIRING (NOT FOR PURCHASE) (NON-ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3AWCI 5303269543
3WCI 5303269545
3APNL-B/S-RH-WHITE
3PNL-B/S-LH-WHITE
4WCI 08067749
5WCI 08067757
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14CHAN-DOOR HINGE (2)
15PANEL-OVEN BOTTOM
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE-GROUND STRAP
215303284616 Frigidaire Range Bulb Clip Thermostat
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
245304524341 Frigidaire Lens
25316403803 Frigidaire Insulation
26WCI 3051344
27RETAINER-GLASS
27BINSULATION OVEN BACK (NON-ILLUSTRATED)
27AINSULATION, OVEN TOP
27C3131903 Frigidaire Door/Drawer Bumper
28WCI 5303015361
29WCI 5303131357
30AWCI 08013188
30WCI 3203218
31SHIELD-LATCH
32SHIELD-LATCH (NON-ILLUSTRATED)
33FSTNR-PUSH ON
34WCI 3131672
36316116400 Frigidaire Oven Light Socket
37316538904 Frigidaire Oven Lamp Light
38WCI 08067810
39WCI 08010606
40SWITCH-OVEN LITE DOOR
41WCI 5303131289
42WCI 5303209316
43WCI 3200848
43CFASTENER-EDGE MTG (NOT ILLUSTRATED)
43AINSULATION, OVEN WRAPPER
43BSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
44WCI 3203582
44AANTI-TIP KIT (NOT ILLUSTRATED)
44BWCI 5303206618
44C3203550 Frigidaire Oven Plug
45WCI 3131252
