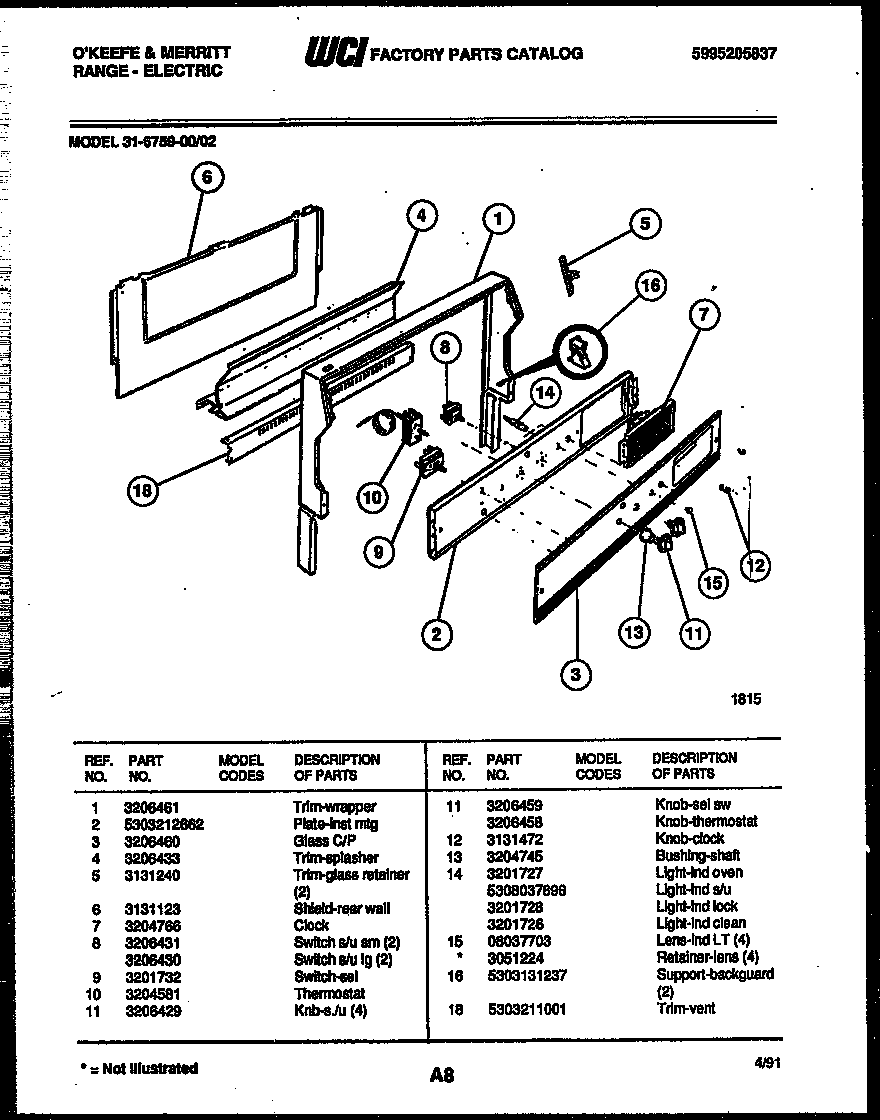

31-6759-23-02 07 – BACKGUARD

31-6759-23-02 07 – BACKGUARD

Written by

in

31-6759-23-02 07 – BACKGUARD

Products

PositionProduct
1WCI 3206461
2PLATE, INSTRUMENT MTG
3GLASS C/P
4WCI 3206433
5TRIM-GLASS RTNR. LH & RH
6SHIELD-BACKGUARD,REAR WALL
7ELECTRICAL CLOCK
8A5303935086 Frigidaire Oven Top Burner Switch Kit
9WCI 3201732
10THERMOSTAT-OVEN
11WCI 3206429
11WCI 3206459
11AWCI 3206458
12KNOB-CLOCK
13WCI 3204745
14CLIGHT/LAMP, INDICATOR, BLUE, 250 V
14AWCI 5308037896
14BINDICATOR LIGHT-LOCK (1)
14INDICATOR LITE, OVEN (BLACK)
15WCI 08037703
15ARETAINER-LENS
16SUPPORT-BACKGUARD,(2)
18WCI 5303211001
