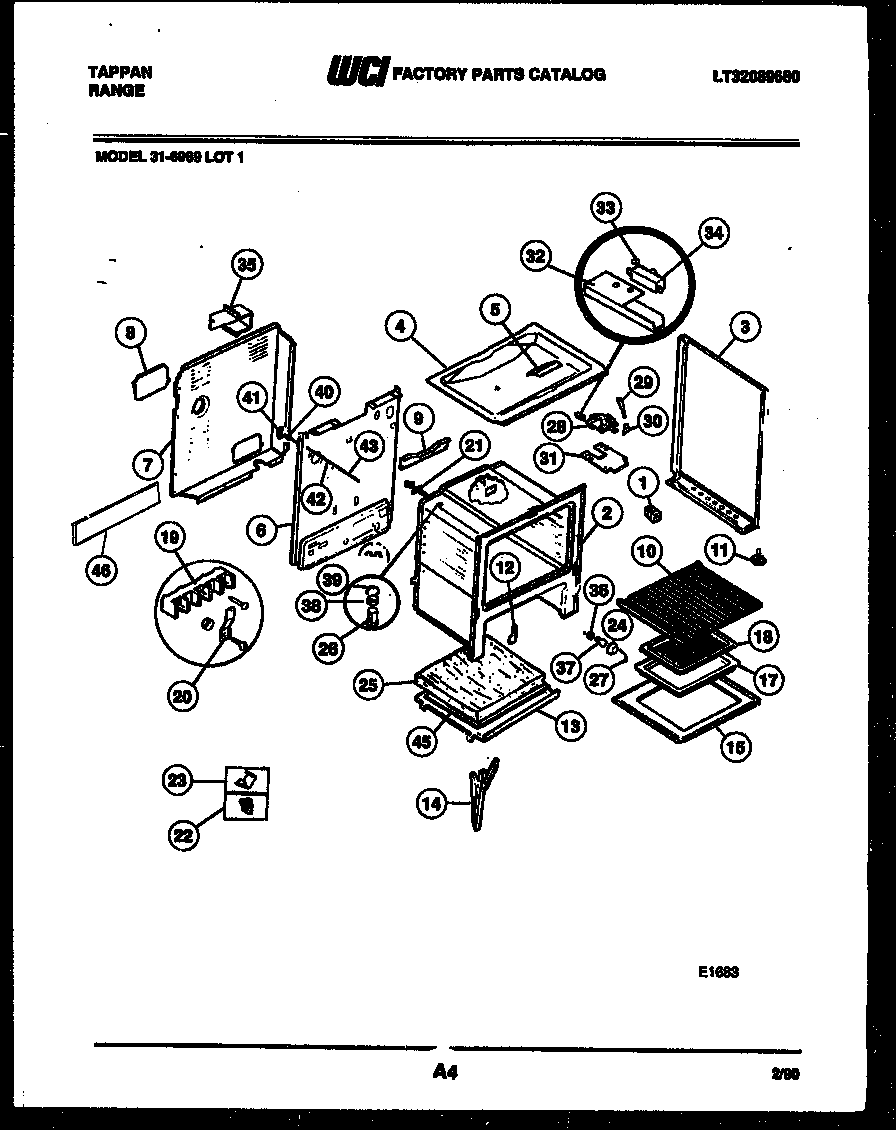

31-6969-00-01 04 – BODY PARTS

Products

Position	Product
1	SPACER-BODYSIDE, (8)
3A	B/S-RH-(WHITE)
3	B/S-LH-(WHITE)
4	WCI 3051109
5	WCI 3131101
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	PANEL-OVEN BOTTOM
17	WCI 3013568
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08011708
21	5304497424 Frigidaire Oven Temperature Sensor Probe Kit
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	WCI 3051344
27	RETAINER-GLASS
27E	WCI 08067783
27C	INSULATION, OVEN WRAPPER
27D	SCREW – CHANNEL MTG (NON-ILLUSTRATED)
27A	INSULATION OVEN BACK (NON-ILLUSTRATED)
28	WCI 3015361
29	WCI 3131357
30A	WCI 08013188
30	WCI 3203218
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FASTENER, PUSH ON (3)
34	SWITCH-LATCHING
35	WCI 3203582
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08067810
39	WCI 08010606
40	WCI 3202622
41	BRKT LIGHT SWITCH
42	ROD-LIGHT SWITCH
43	WCI 3051251
45C	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
45D	FASTENER-EDGE MTG (NOT ILLUSTRATED)
45E	3203550 Frigidaire Oven Plug
45A	INSULATION, OVEN TOP
45	WCI 3200848
45B	3131903 Frigidaire Door/Drawer Bumper
45G	BRKT, RANGE CABLE MTG (NON-ILLUSTRATED)
45F	ANTI-TIP KIT (NOT ILLUSTRATED)
46	WCI 3131252
