31-6969-23-02 02 – BACKGUARD

31-6969-23-02 02 – BACKGUARD

Written by

in

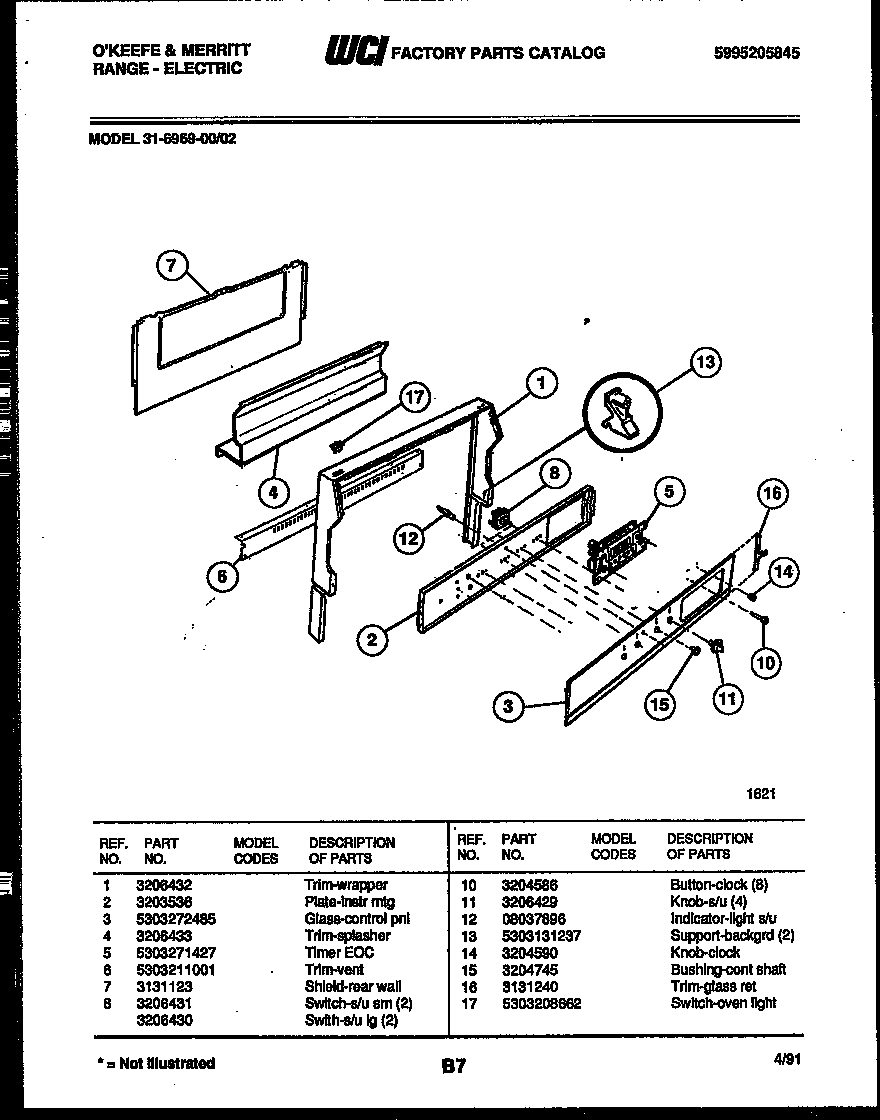

31-6969-23-02 02 – BACKGUARD

Products

PositionProduct
1WCI 3206432
2PLATE-INSTRUMENT MTG
3WCI 5303272485
4WCI 3206433
5EOC
6WCI 5303211001
7SHIELD-BACKGUARD,REAR WALL
8A5303935086 Frigidaire Oven Top Burner Switch Kit
10BUTTON ELECTRONIC (8)
11WCI 3206429
12LIGHT – IND 125 V (2)
13SUPPORT-BACKGUARD,(2)
14KNOB ELECT OVEN CONTROL (1)
15WCI 3204745
16TRIM-GLASS RTNR. LH & RH
175308015487 Frigidaire Switch-Oven Light
