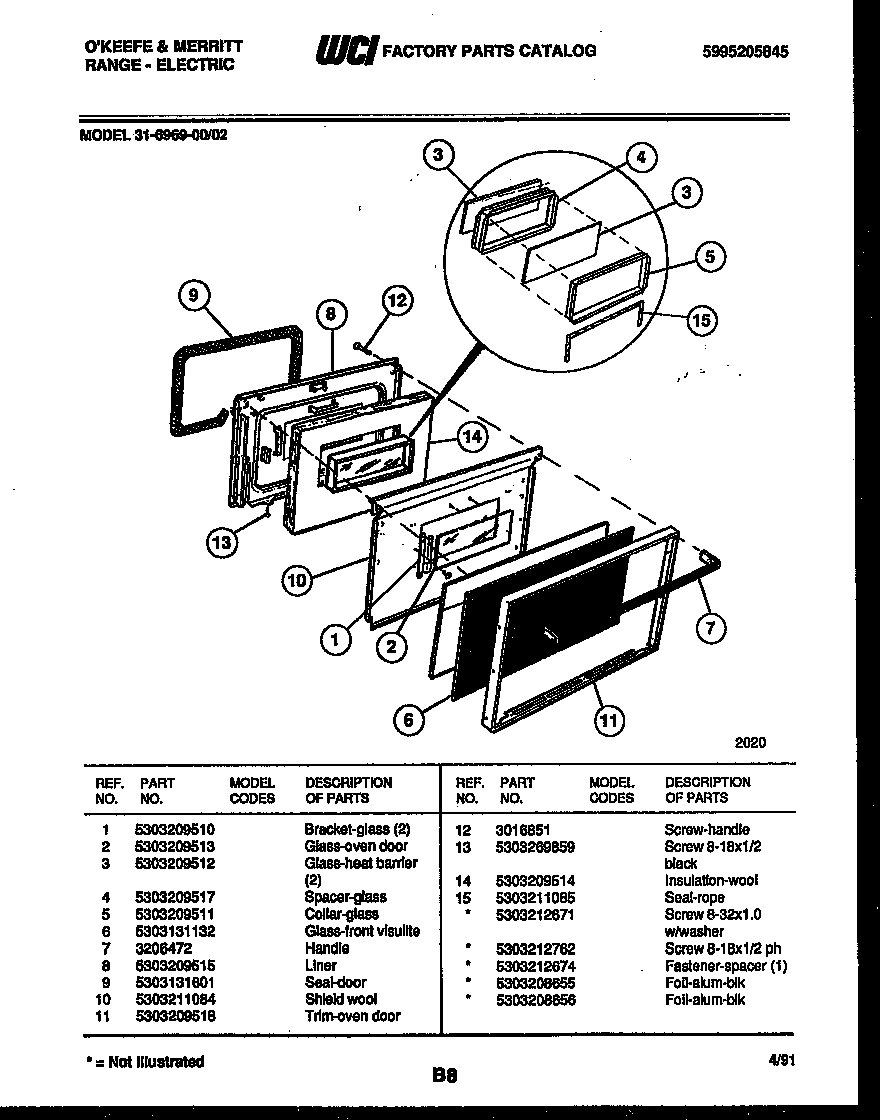

31-6969-23-02 03 – DOOR PARTS

31-6969-23-02 03 – DOOR PARTS

Written by

in

31-6969-23-02 03 – DOOR PARTS

Products

PositionProduct
*49703SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*49704FSTNR-NYLON SPACER (NON-ILLUSTRATED)
*497045303300265 Frigidaire Oven Screw
*497045303208655 Frigidaire Reflector Assembly
*49704REFLECTOR, ALUMINUM FOIL
1BRACKET-GLASS MTG
2GLASS-OVEN DOOR, INNER
3GLASS-OVEN DOOR, HEAT BARRIER, (2)
4WCI 5303209517
5WCI 5303209511
6GLASS FRNT
7WCI 3206472
8WCI 5303209515
95303131601 Frigidaire Oven Seal
10SHIELD-INSULATION
11WCI 5303209518
12WCI 3016851
13WCI 5303269859
14INSULATION-OVEN DOOR
15SEAL-ROPE, 0.25 DIA
