31-7348-66-05 06 – BACKGUARD – Aparts

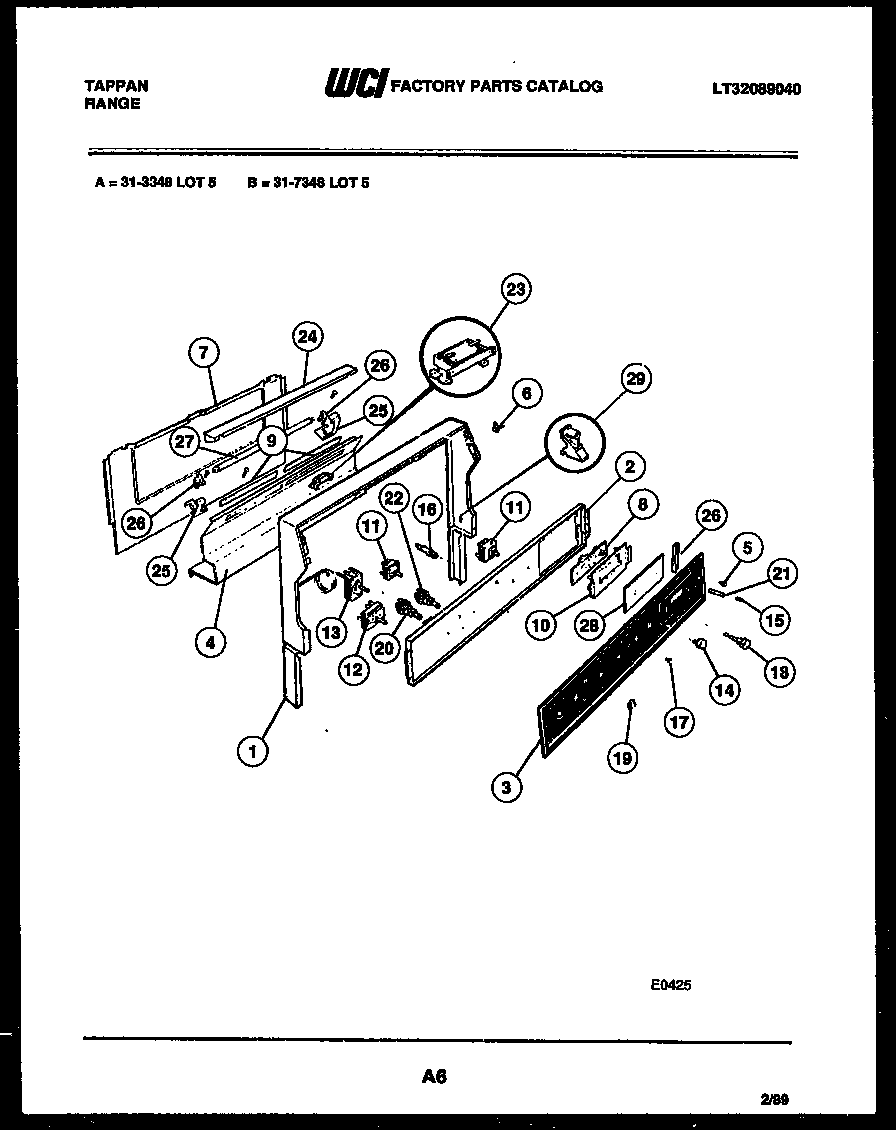

31-7348-66-05 06 – BACKGUARD

Products

Position	Product
1	WCI 3131436
2	PLATE-INSTR MTG
3	WCI 3051863
4	TRIM-LOW SPLASHR
5	NUT - DECOR (2)
6	FSTNR-GLASS(2)
7	SHIELD-BACKGUARD,REAR WALL
8	WCI 3131488
9	GLASS-WORK LITE (2)
10	WCI 3131507
11	SWITCH S/U (4)
12	WCI 3016812
13	WCI 3051323
14B	KNOB-THERMO.
14	KNOB-TOP ELM (4)
14A	WCI 3051488
15	WCI 358T206P01
16A	INDICATOR LIGHT (4)
16	INDICATOR-LITE OVN
17A	RETAINER-LENS
17	LENS-IND LIGHT (2)
18	BTN.-ELEC. CLK. (4)
19	WCI 045T071P01
20	SWITCH-OV LT
21	WCI 3131508
22	SW.-FLUOR. LT.
23	WCI 3051115
24	SHIELD-FLUOR LT.
25	BRKT-FLUOR LT MTG LH
25A	BRKT-FLUOR LT MTG RH
26	RECEPTACLE-FLU LT LH
26A	RECEPTACLE-FLU LT RH
27	BULB-FLUOR
28	WCI 3051160
29	SUPPORT-BACKGUARD (2)
