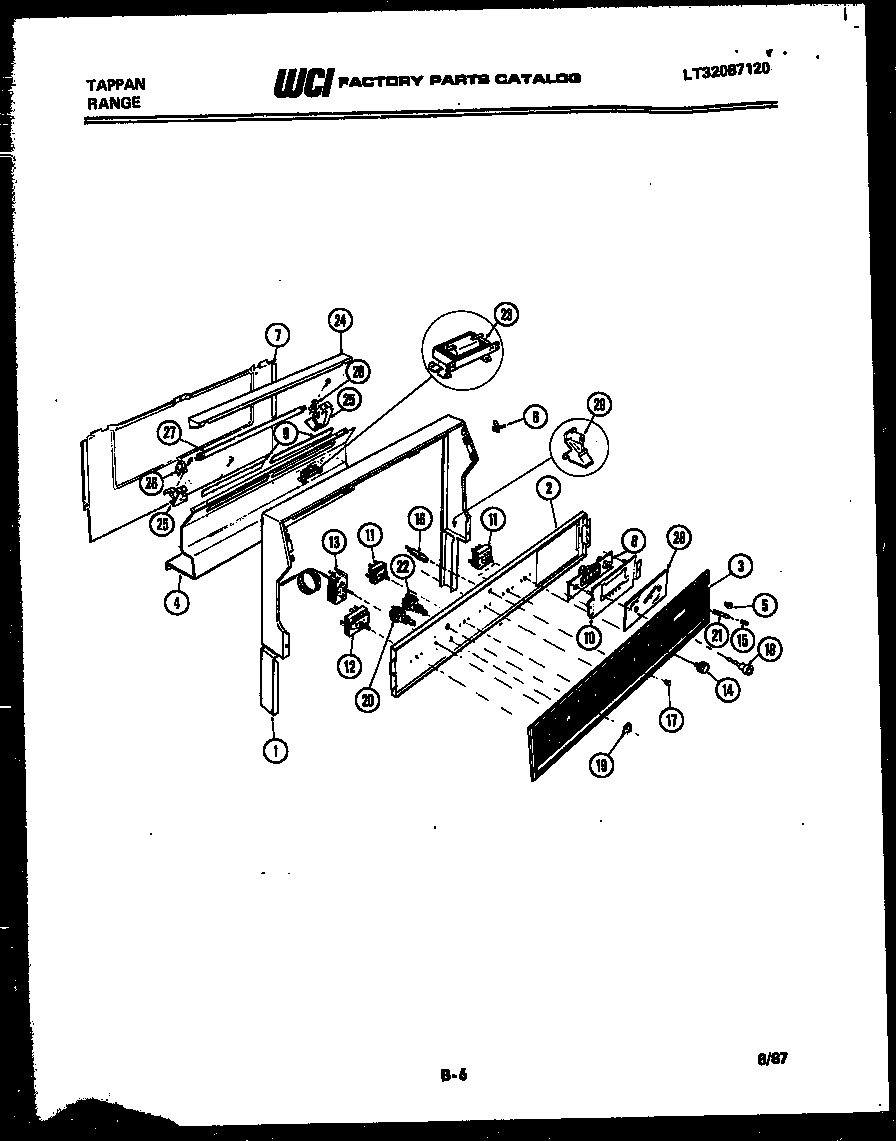

31-7647-00-02 02 – BACKGUARD – Aparts

31-7647-00-02 02 – BACKGUARD

Products

Position	Product
1	WCI 3131436
2	PLATE-INSTR MTG
3	WCI 3051214
4	WCI 3051432
5	NUT - DECOR (2)
6	FSTNR-GLASS(2)
7	SHIELD-BACKGUARD,REAR WALL
8	WCI 3131488
9	GLASS-WORK LITE (2)
10	WCI 3131507
11	SWITCH S/U (4)
12	WCI 3051317
13	WCI 3051323
14	WCI 3051488
14	KNOB-TOP ELM (4)
14	KNOB-THERMO.
15	WCI 358T206P01
16	INDICATOR-LITE OVN
16	INDICATOR LIGHT (4)
17	LENS-IND LIGHT (2)
17A	RETAINER-LENS
18	WCI 106T051P02
19	WCI 045T071P01
20	SWITCH-OV LT
21	WCI 3131508
22	SW.-FLUOR. LT.
23	WCI 3051115
24	SHIELD-FLUOR LT.
25	BRKT-FLUOR LT MTG LH
25	BRKT-FLUOR LT MTG RH
26	RECEPTACLE-FLU LT LH
26	RECEPTACLE-FLU LT RH
27	BULB-FLUOR
28	WCI 3051160
