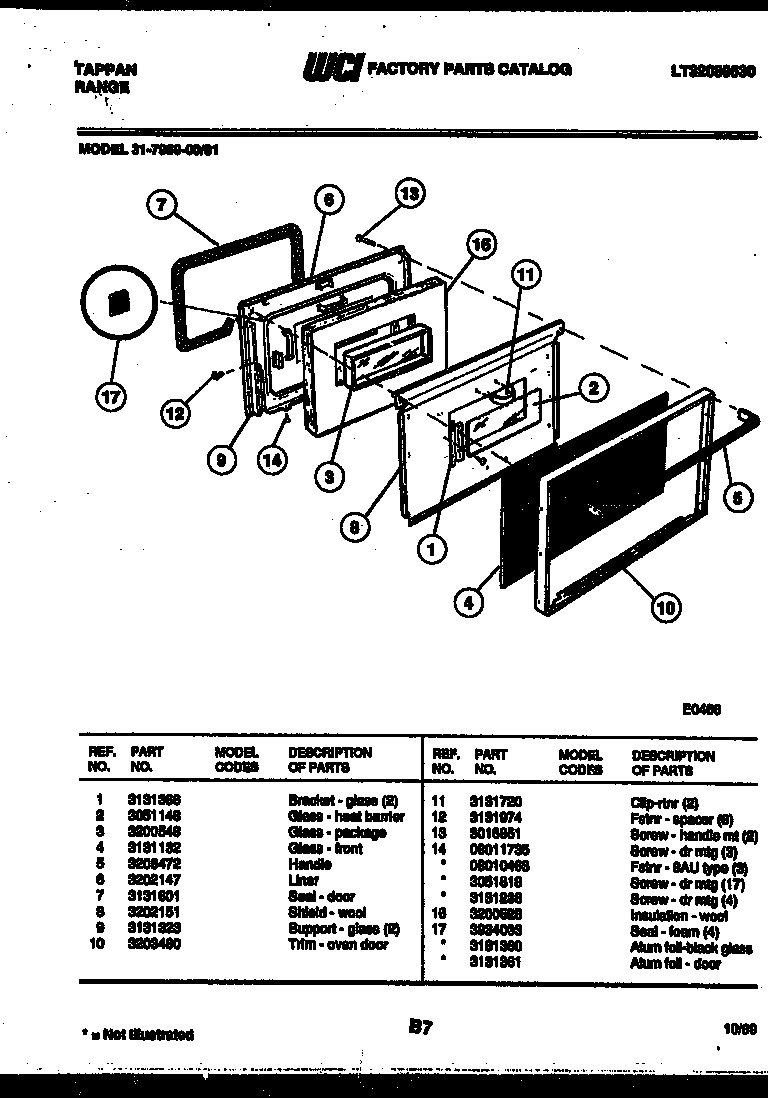

31-7969-00-01 03 – DOOR PARTS

31-7969-00-01 03 – DOOR PARTS

Written by

in

31-7969-00-01 03 – DOOR PARTS

Products

PositionProduct
*331545303208655 Frigidaire Reflector Assembly
*33154ALUM FOIL-B/G GLASS
1BRKT GLASS (2)
2WCI 3051148
3WCI 3200548
4GLASS FRNT
5WCI 3206472
6LINER
75303131601 Frigidaire Oven Seal
8WCI 3202151
9SUPPORT, GLASS
10WCI 3203480
11CLIP-RETAINING
12FSTNR. SPACER (6)
13WCI 3016851
14WCI 08011735
14AWCI 08010463
14WCI 3131236
145303300265 Frigidaire Oven Screw
16INSUL OV DR W/ FOIL
17SEAL, FOAM (4)
