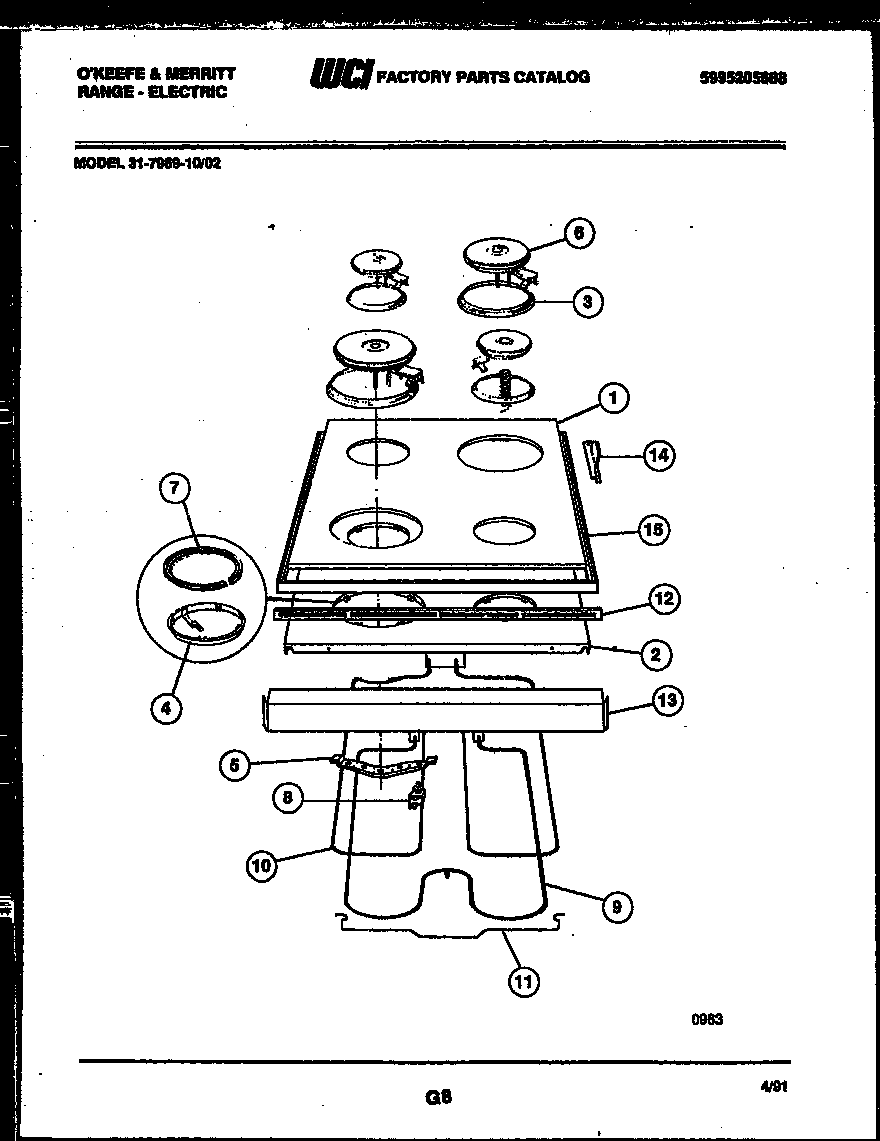

31-7969-00-02 04 – COOKTOP AND BROILER PARTS

31-7969-00-02 04 – COOKTOP AND BROILER PARTS

Written by

in

31-7969-00-02 04 – COOKTOP AND BROILER PARTS

Products

PositionProduct
1WCI 3204831
2WCI 3204833
3TRIM-RING OUTER 6“ (2)
3ATRIM-RING OUTER MED
4TRIM-RING INNER MED
4TRIM-RING INNER SMALL (2)
5CHANNEL-TOP ELEMENT MOUNTING MED.
5CHANNEL-TOP ELEMENT MOUNTING LARGE
6WCI 5303051142
6AWCI 3204830
7WCI 3018330
7ASEAL-TOP ELEMENT MED
8SWITCH-THERMAL PROTECTOR (4)
9316075103 Frigidaire Oven Bake Element
105303051140 Frigidaire Broil Element
11316203400 Frigidaire Oven Support
12WCI 355T377S01
13WCI 5303206607
14ABRACKET-HINGE,MAIN TOP RH
14BRACKET-HINGE,MAIN TOP LH
15WCI 3204894
