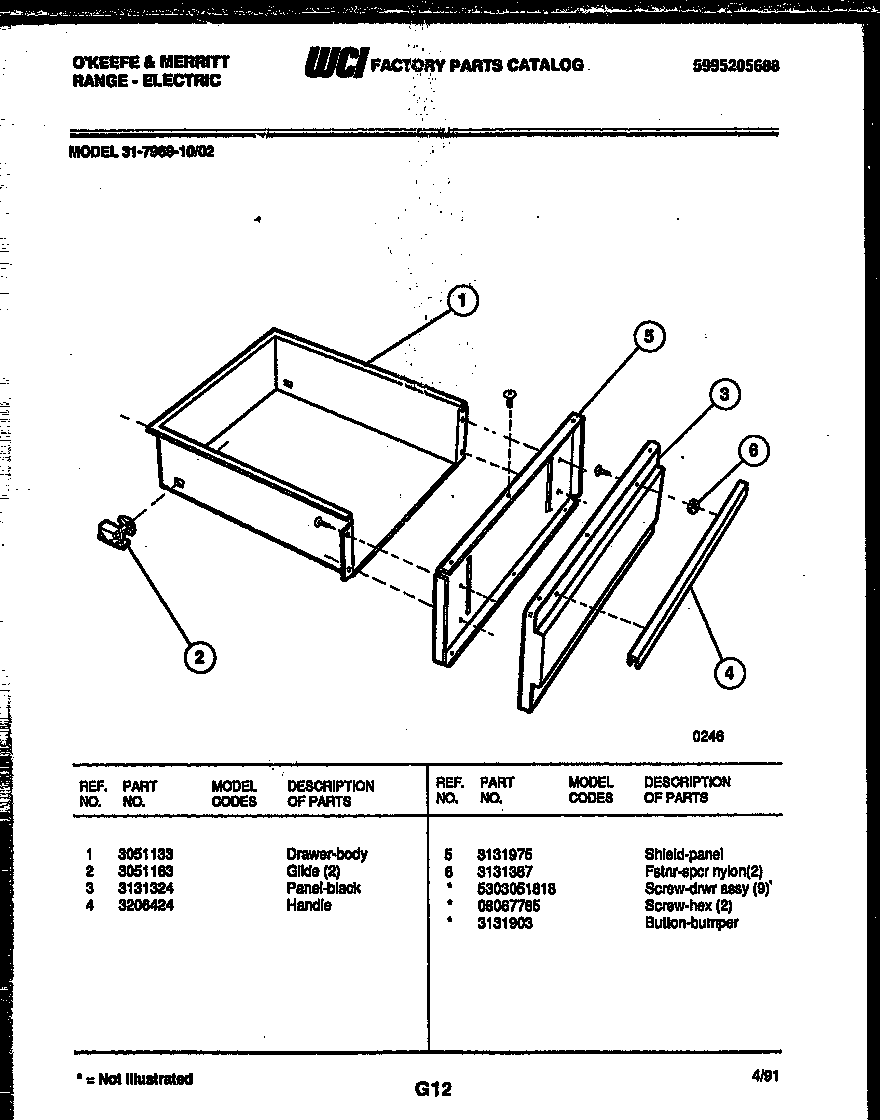

31-7969-00-02 06 – DRAWER PARTS

Written by

Products

Position	Product
*49447	5303300265 Frigidaire Oven Screw
*49447	3131903 Frigidaire Door/Drawer Bumper
*49447	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
1	WCI 3051133
2	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
3	PANEL, DRWR., BLACK
4	HANDLE – BLACK
5	SHIELD-PNL
6	FSTNR, SPACER (2)
