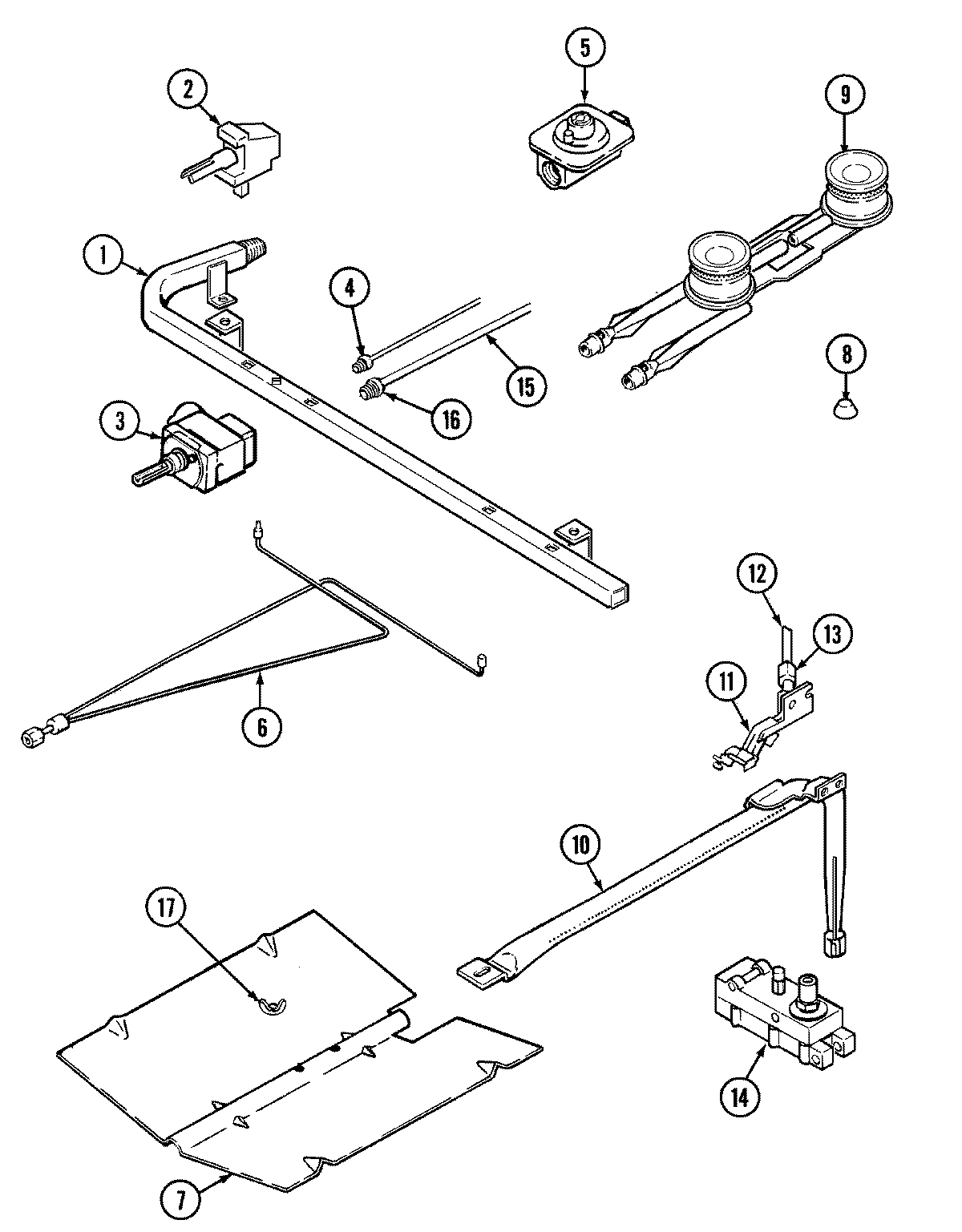

31000PAA 03 – GAS CONTROLS

Products

Position	Product
1	MAY 74002424
2	WP8273096 Whirlpool Screw
2	MAY 74002383
3	MAY 74002425
3	MAY 7101P010-60
4	MAY 1555222
5	MAY 7510P002-60
6	MAY 74002426
6	MAY 7103P128-60
7	MAY 3601F229-45
8	MAY 74002435
9	SCREW (8BX3/8-NI)
9	MAY 74002392
10	MAY 74002434
10	SCREW
11	MAY 7432P068-60
11	SCREW (10-24X5/16-NI)
12	MAY 3414F108-44
13	MAY 1555261K
14	W11693756 Whirlpool Screw Assembly
14	MAY 74002428
15	MAY 12001100
15	MAY 74001062
16	MAY 1555251
17	NUT, WING
18	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
