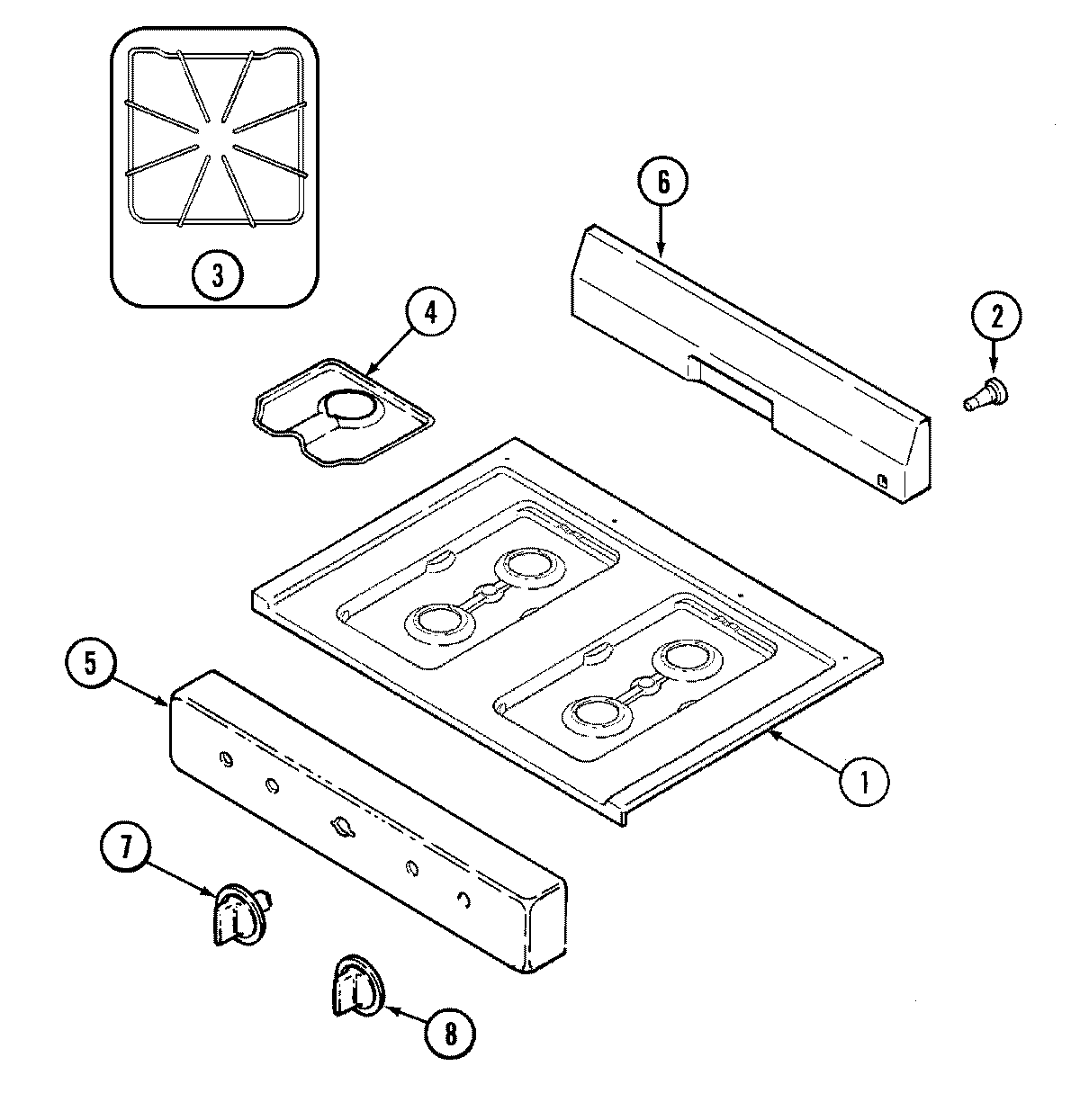

31000PAT 05 – TOP ASSEMBLY

31000PAT 05 – TOP ASSEMBLY

Written by

in

31000PAT 05 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74005045
2SPACER, HINGE (MAIN TOP)
2SCREW
3WP2003X030-00 Whirlpool Burner Grate
4MAY 5401A433-60
5MAY 7101P074-60
5MAY 74002351
6MAY 74002354
7WP74002419 Whirlpool Thermal Knob
7MAY 74010131
8WP74002353 Whirlpool Control Knob
9MAY 8113P434-60
10MAY 16008701
10MAY 74004367
11MAY 16010161
