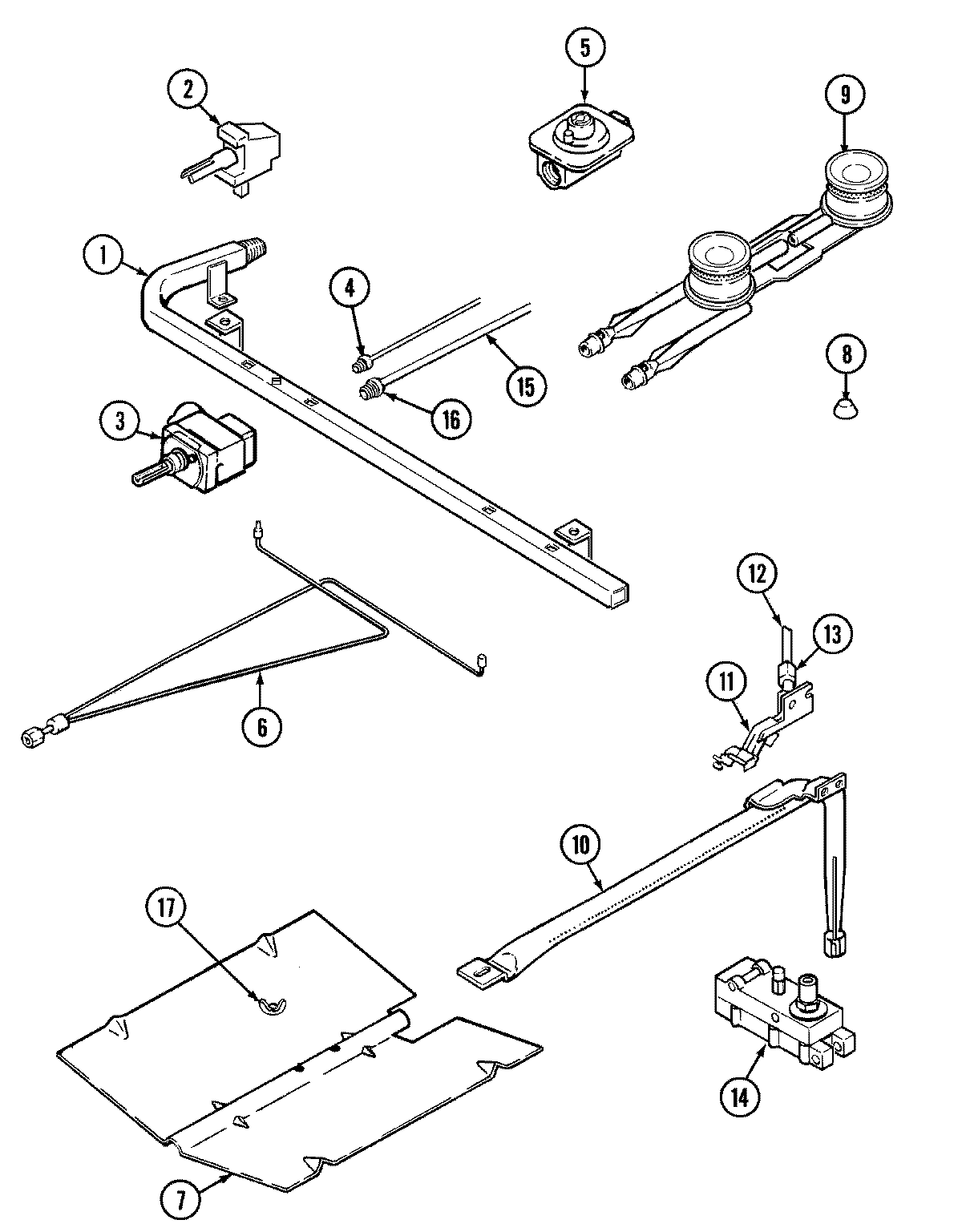

31000PAW 03 – GAS CONTROLS

Products

Position	Product
1	MAY 74002424
1	MAY 74010235
2	MAY 12002286
2	WP8273096 Whirlpool Screw
2	MAY 74002383
3	MAY 74002425
3	WP74009857 Whirlpool Screw
3	WP74009917 Whirlpool Thermostat
3	MAY 7101P010-60
4	MAY 1555222
5	MAY 7510P002-60
6	MAY 74002426
6	MAY 74009922
6	MAY 7103P128-60
7	MAY 3601F229-45
8	MAY 74002435
9	MAY 74010149
9	MAY 74010148
9	MAY 74002392
9	SCREW (8BX3/8-NI)
10	SCREW
10	MAY 74002434
10	MAY 74010134
11	WPW10206112 Whirlpool Oven Pilot Burner
11	SCREW (10-24X5/16-NI)
11	MAY 7432P068-60
12	MAY 3414F108-44
13	MAY 1555261K
14	MAY 74010136
14	MAY 74010135
14	MAY 74010137
14	MAY 74010138
14	W11693756 Whirlpool Screw Assembly
14	MAY 74002428
15	MAY 74010133
15	MAY 12001100
15	MAY 74001062
16	MAY 1555251
17	NUT, WING
18	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
