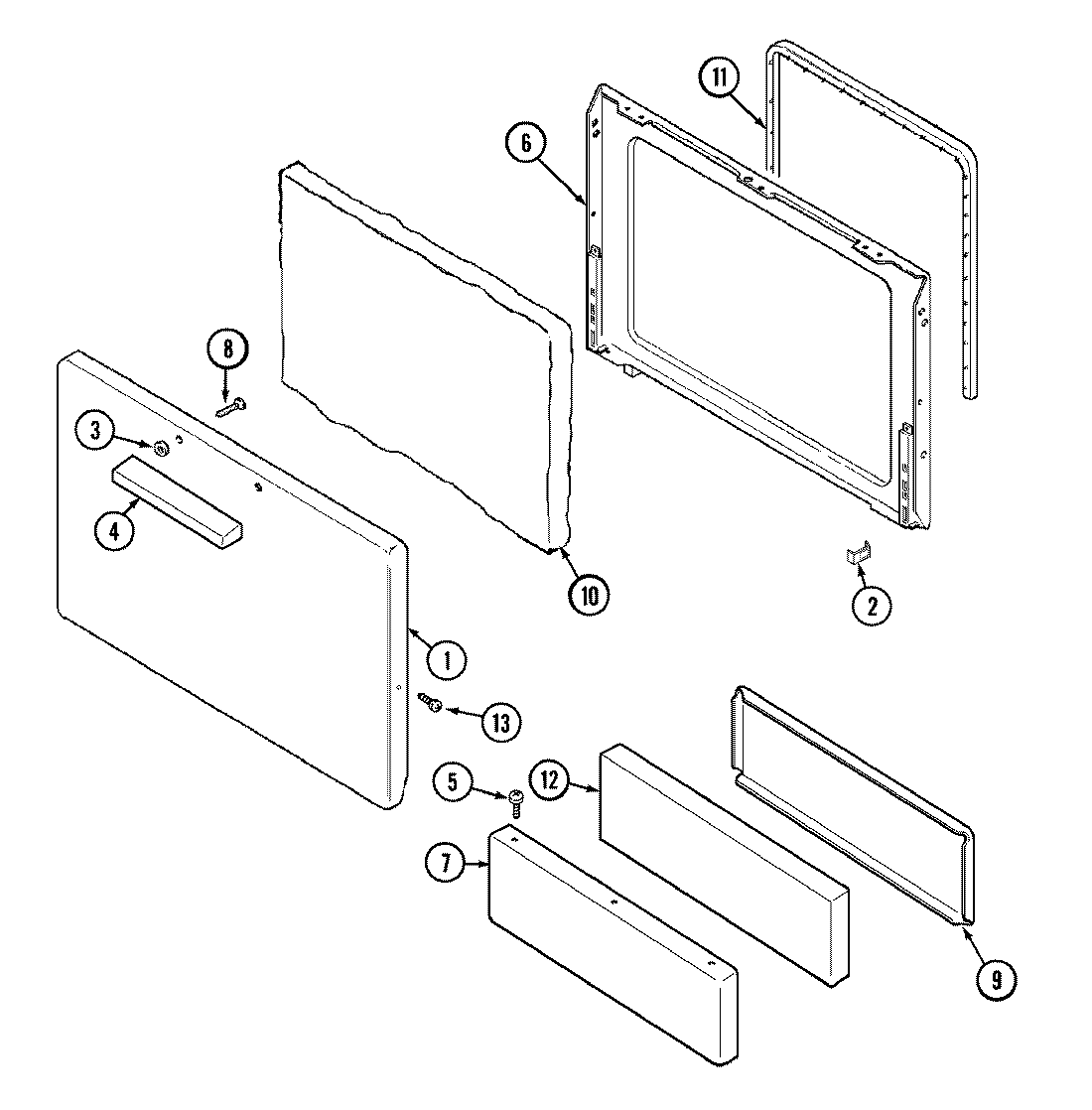

31000PAWT 02 – DOOR

Written by

31000PAWT 02 – DOOR

Products

Position	Product
1	MAY 74002395
2	CLIP, DOOR
3	MAY 8010P084-60
4	MAY 74001820
6	NUT, SNAP (ROUND-WHT)
6	MAY 74002396
6	MAY 74003240
7	MAY 74002489
7	SCREW
8	MAY 7101P080-60
9	MAY 74002491
10	MAY 4804F025-60
10	MAY 4804F028-60
11	WP7212P043-60 Whirlpool Oven Door Seal Gasket
12	MAY 74001814
13	WP98008544 Whirlpool Screw Assembly
