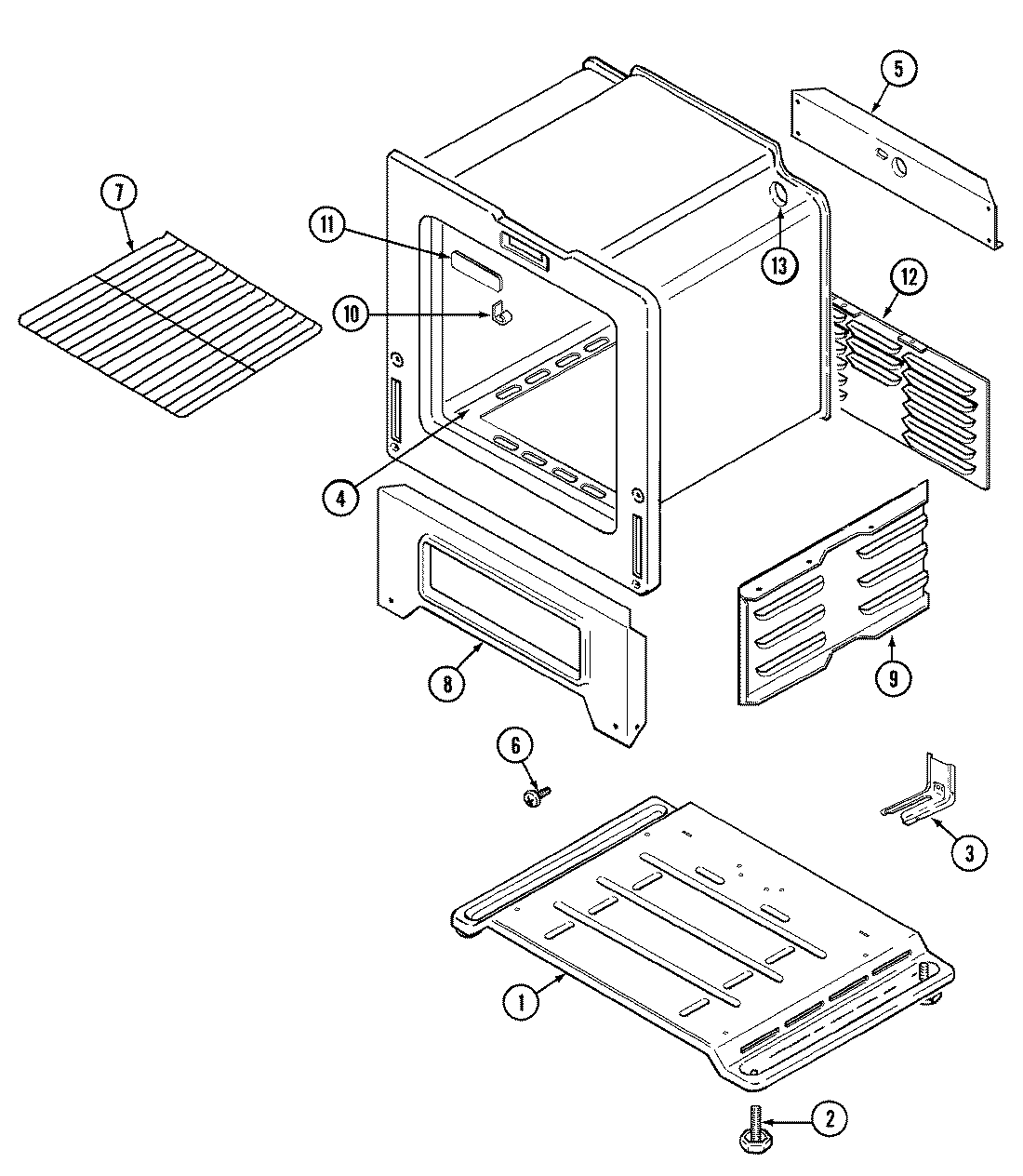

31000PAWT 04 – OVEN/BASE

31000PAWT 04 – OVEN/BASE

Written by

in

31000PAWT 04 – OVEN/BASE

Products

PositionProduct
1MAY 74002372
2W11665456 Whirlpool Range Level Foot
3MAY 3801F218-51
4MAY 74002376
4MAY 74002377
5MAY 74002378
6WP74003976 Whirlpool Screw
7WPW10282492 Whirlpool Oven Rack
8MAY 74002327
8MAY 74001449
8MAY 8004P024-60
9MAY 74002374
9MAY 74002375
10WP7112P004-60 Whirlpool Thermal Clip
11MAY 7718P013-60
12MAY 74002379
13SCREW
13MAY 74002380
