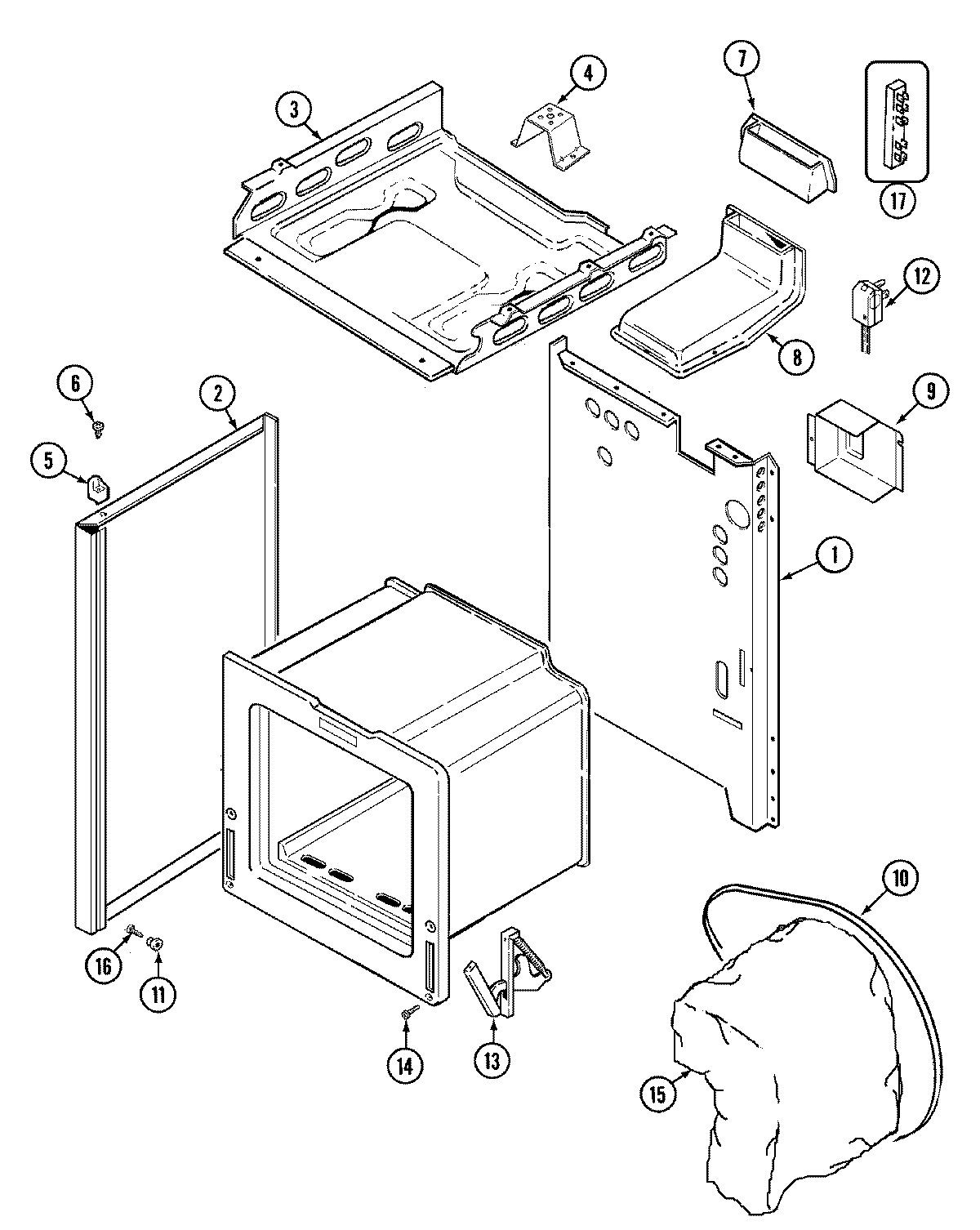

31001PAT 01 – BODY

Products

Position	Product
1	MAY 74002364
1	MAY 74003451
1	MAY 8008P021-60
1	MAY 74006548
1	GROMMET
2	MAY 74004965
3	MAY 74002357
4	MAY 74002365
4	MAY 74010151
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	MAY 7101P313-60
7	MAY 74002366
8	WP74003976 Whirlpool Screw
8	MAY 74002367
9	SCREW
9	MAY 74004591
10	MAY 74002369
11	MAY 8004P024-60
12	MAY 7402P043-60
13	W10876639 Whirlpool Door Hinge Assembly
14	SCREW (10-24X5/16-NI)
15	MAY 74002634
15	MAY 74002370
16	W11693756 Whirlpool Screw Assembly
16	MAY 74001449
17	MAY 7401P037-60
17	SCREW (8BX3/8-NI)
